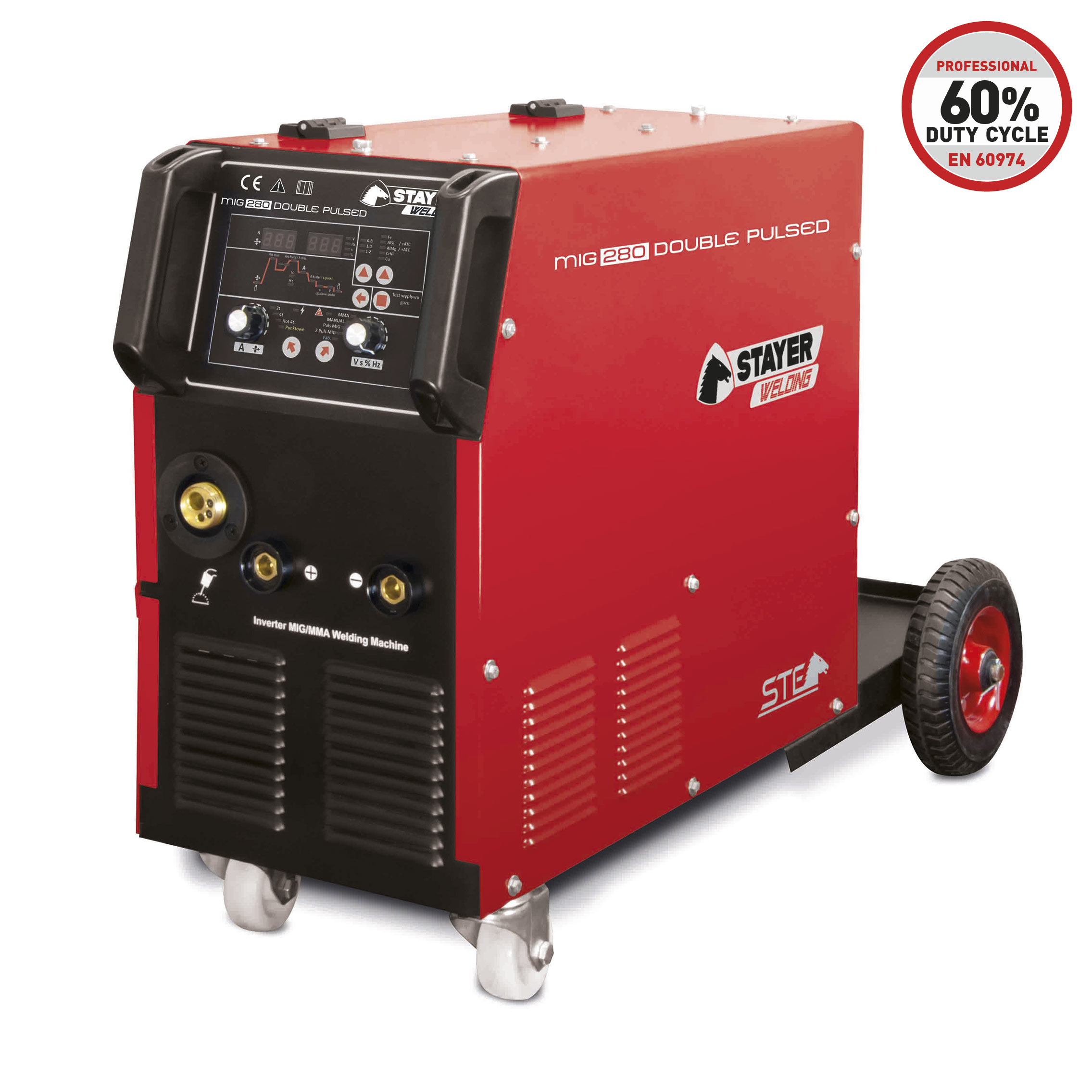

MIG - MAG SYNERGIC DOUBLE PULSE WELDER
MIG 280 DOUBLE PULSED

All about MIG - MAG SYNERGIC DOUBLE PULSE WELDER
MIG 280 DOUBLE PULSED

  • 400V three-phase inverter industrial equipment for MIG, MMA and TIG welding with intelligent synergic adjustment, with 60% factor and high power.
  • Synergic system suitable for welding all types of carbon and stainless steel, aluminum magnesium / silicon, aluminum and copper.
  • Includes specific configuration modes for MMA coated electrode, pulsed / double pulsed and manual mode. Spray mode without splashes in all types of positions thanks to the pulses.
  • Includes 2T, 4T, 4TH and Spot sequence modes – Includes parametrics optimized for 0.8, 1.0 and 1.2mm thread.
  • Includes external regulation of Hot Start and Arc Force for professional MMA welding.
  • Includes two sets of 25mm² torches. A special short one for aluminum and another long one for steel.
  • 4-contact drive mechanism including quadruple ‘U’ pulley special for aluminum and special ‘V’ pulley for steel.
  • Advanced modular electronics managed by two microprocessors for long life and easy technical service.
  • Easy transport and storage: Very compact and low-mass machine. Includes tray for gas cylinders.
  • Manufactured under strict European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU, IEC 60974.
  • Adaptive thermal protection and software managed overload protection system.
  • Low consumption: maximum of 15 amps per phase.
  • Suitable for generators, capable of withstanding voltage deviations between ±17%.
  • Power cable – 2.6m x 1.5 mm²

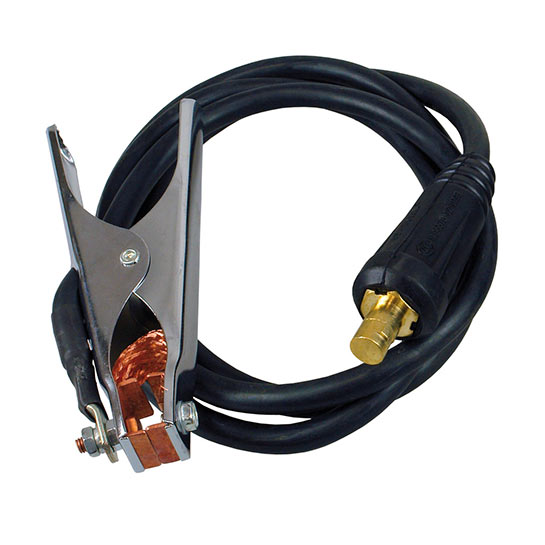

  • Earth clamp cable – 2m x 25mm²

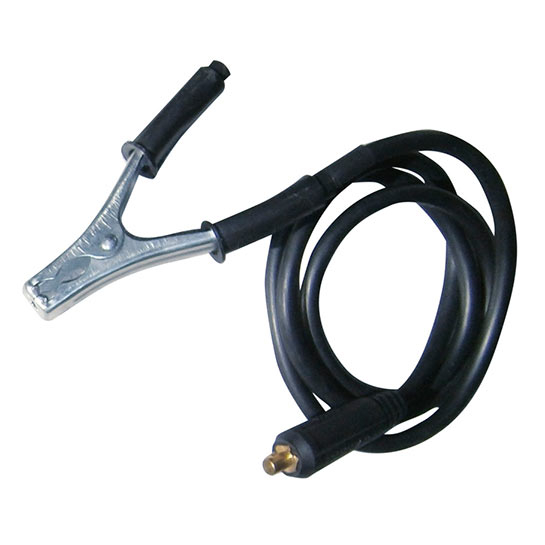

  • Electrode holder cable – 3m x 25 mm²

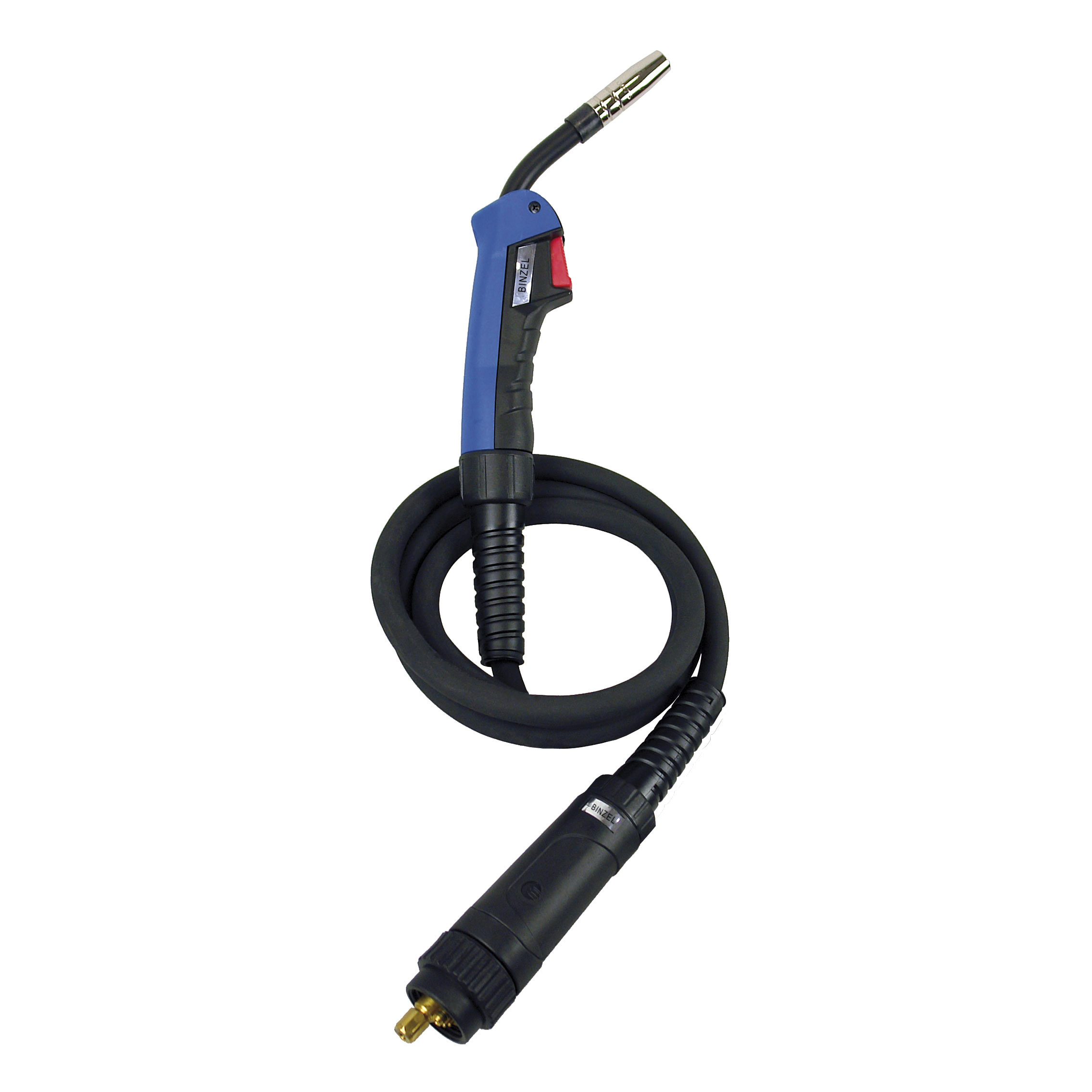

  • Torch for INNOTEC 24 aluminium – 2m x 25 mm²
  • Torch for INNOEC 24 steel – 4m x 25 mm²
  • Cylinder support tray – 29 x 27,5 cm
  • Cylinder safety chain – 90 cm
  • Transport wheels – 7 / 20 cm
  • 1 / 1.2mm “U” rollers – 4 Uds
  • 0.8 / 1.0mm “V” rollers – 2 Uds
  • 1.2 / 1.6mm “V” rollers -2 Uds
  • Flat rollers – 2 Uds
  • 0.8mm contact tip for steel -2 Uds
  • 1.0mm contact tip for steel – 2 Uds
  • 1.2mm contact tip for steel – 2 Uds
  • 1.6mm contact tip for steel – 2 Uds
  • 1.0mm contact tip for aluminium – 2 Uds
  • 1.2mm contact tip for aluminium – 2 Uds

All accessories available in our catalogue

  • Current280 A
  • Voltage3 x 400 V
  • Duty Cycle60 %
  • Coated electrodes1.6 – 6.0 mm
  • Thread thickness0.8 – 1.0 – 1.2 – 1.6 mm
  • Coil weight5 – 15 kg
  • Used with generator14 KVA / 230V ±17%
  • Dimensions53 x 64 x 29.5 cm
  • Weight34 kg
  • DINSE Terminal1/2” (35 – 50) ø
  • Power cord2.5m – 2.5 mm² + 1 – 1.5 mm²
  • Cable + ground clamp2m – 25 mm²
  • Cable + electrode clamp3m – 25 mm²
  • Aluminum MIG TorchINNOTEC 24 / 2m x 25 mm²
  • MIG steel torchINNOTEC 24 / 4m x 25 mm²
  • V-sheaves x2 (0.8 / 1.0) x2 (1.2 / 1.6) mm
  • U-sheavesx4 (1.0 / 1.2) mm
