SYNERGIC MIG - MAG WELDER
MIG 500 BT

All about SYNERGIC MIG - MAG WELDER
MIG 500 BT

  • Industrial equipment Superior inverter for continuous wire welding, covered electrode and MIG with detachable tension feeder.
  • Simple to use with simpler menus to configure in manual/classic/synergic mode.
  • Adjustable Arc Force to be able to weld cellulosic electrode and improve TIG response.
  • Easy polarity reversal for hollow wire.
  • Two high brightness displays for simultaneous viewing of current and voltage with true values ??in real time.
  • Manufactured under strict European specifications 2014/35/EU, 2014/30/EU and 2011/65/EU, IEC 60974.
  • Suitable for 3x400V generators. Capable of withstanding voltage deviations between ±17%.
  • Detachable and movable winder up to 10 meters from the equipment for welding in high places, remote or difficult to access for the equipment.
  • Professional thread winder, with 85W motor and 4 push / pull rollers, safe and stable thread reducer, suitable for all types of bobbins.
  • Intelligent control of voltage, current and speed from the winding unit itself.
  • Power cable / Pure copper 3m x 6mm²

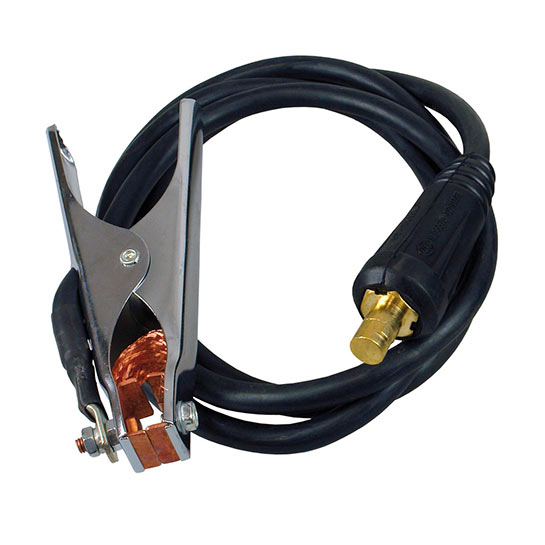

  • Earth cable with clamp / Pure copper 3m x 40mm²

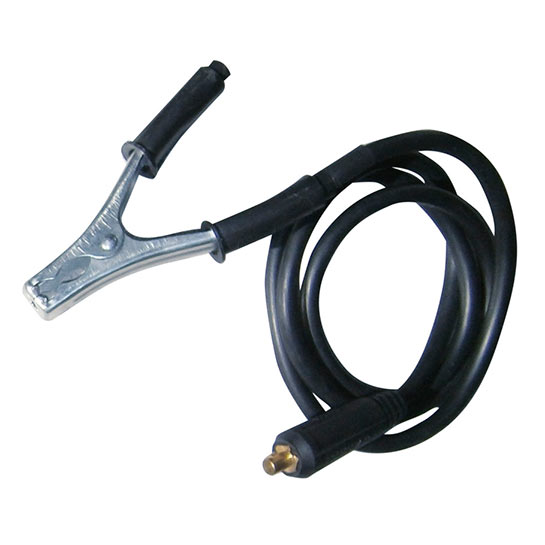

  • Clamp Electrode Cable / Pure Copper 3m x 40mm²
  • Winding hose – compact equipment 10m
  • Gas connection pipe 12m
  • High capacity external winder with:
    • 2 Rollers 1.2 – 1.6 mounted
    • 2 Rollers 0.8 – 1 extra

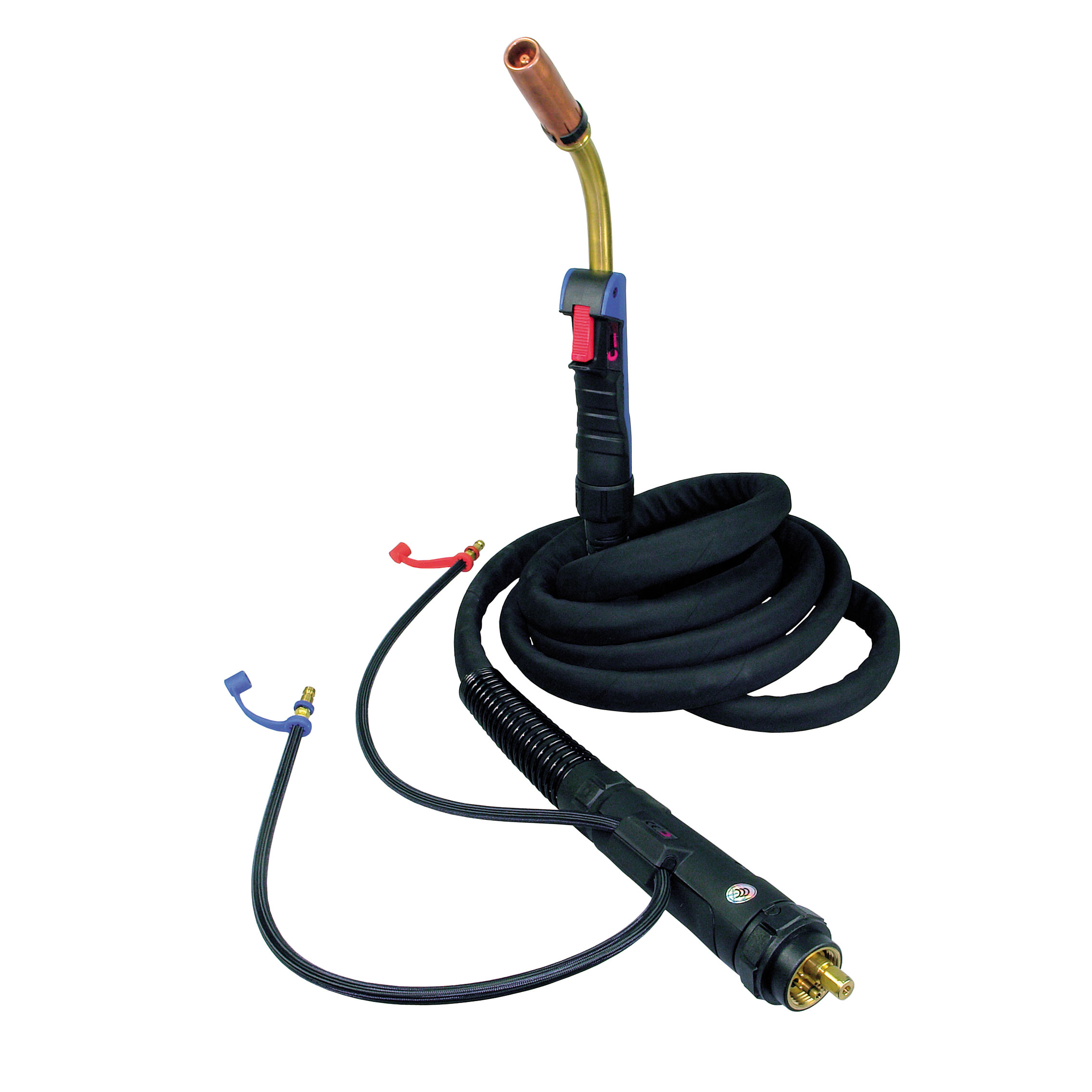

  • BINZEL 501D / 4m torch.
  • Support for gas cylinder with protective flanks.
  • Rollers for 2×0.8 – 1.0 / 2×1.0 – 1.2 / 2×2-1.6
  • 6 replacement contact tips 2×0.8 – 2×1.0 – 2×1.2
  • Tips Key.
  • 1 Flowmeter
  • 1 Clamp.
  • 4 Fuses3.5 A 250V.
  • Current500 A
  • Voltage3×400 V
  • Duty cycle60 %
  • Coated electrodes1.6 – 8.0 mm
  • Thread thickness0.8 – 1.0 – 1.2 – 1.6 mm
  • Coil weight5 – 15 kg
  • Generator25 KVA / 230V ±17%
  • Dimensions100 x 160 x 33 cm
  • Weight50 kg
  • DINSE connector1/2” (35 – 50) ø
  • Power cord3m x 6 mm²
  • Cable + ground clamp3m – 40 mm²
  • Cable + electrode clamp3m – 40 mm²
  • MIG torch501D – 4m
  • FlowmeterIncluded
  • Sheaves (x2 0.8-1.0)(x2 1.0-1.2) (x2 1.2-1.6)
