MIG/MAG RANGE
MIG 200 MULTI

All about MIG/MAG RANGE
MIG 200 MULTI

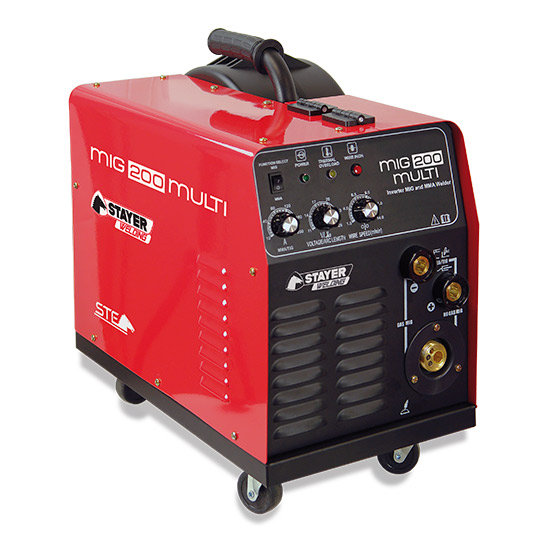

  • STAYER MIG MULTI inverter equipment, with connection for EUROTORCH torch and high power, 200 amps with 60% duty cycle.
  • Designed for MIG, TIG and MMA processes of the highest quality.
  • Simple configuration in MIG mode, possibility of using gas or hollow wire without gas, by means of easy reversal of polarity.
  • With gas, connect torch return to positive terminal (+).
  • Hollow wire without gas, connect torch return to negative terminal (-).
  • Professional welding adjustment with adjustment potentiometers for wire speed, voltage and current. A switch enables the change of the wire work mode (MIG) and electrode mode (MMA) and TIG.
  • Wire output test button.
  • Protection against over temperature and over currents.
  • Very complete equipment including torch, sheave, ground cables and electrode
  • IGBT technology based on state-of-the-art microprocessor control capable of providing up to 200 amps.
  • Transportable and robust: Compact, with wheels to facilitate transport and a handle.
  • Completely Inverter IGBT power circuitry, oversized and quality components.
  • Large capacity, for coils up to 15kg.
  • Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
  • Pure Copper power cable 2m x 2,5mm²

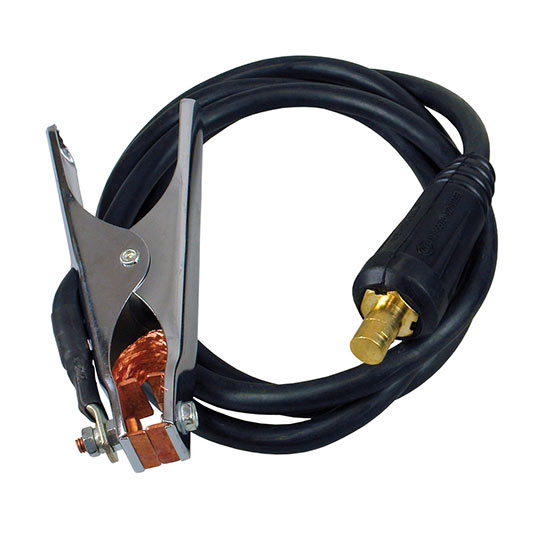

  • Pure Copper Land cable with clamps 3m x 25mm²

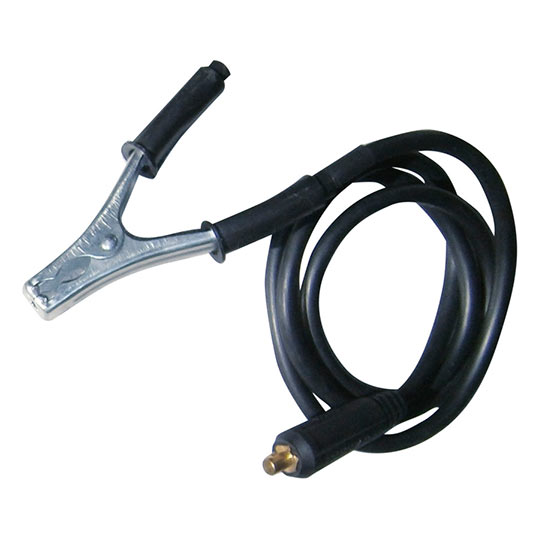

  • Pure Copper Electrode holder 3m x 25mm²

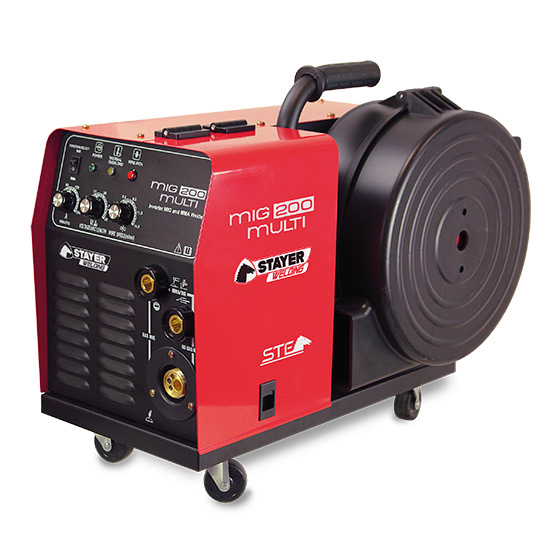

  • External wire feeder 15kg

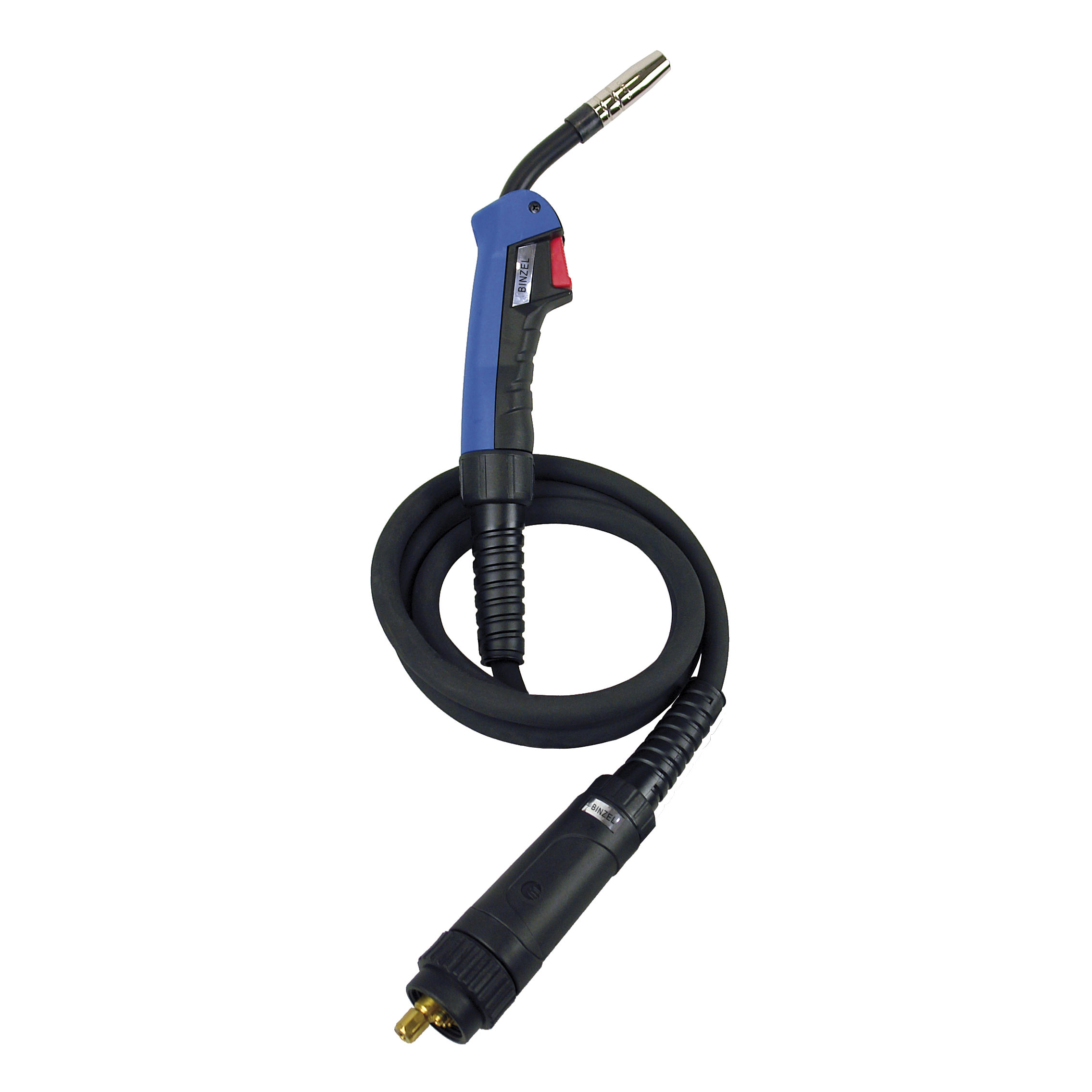

  • BINZEL Torch 15AK / 3m.
  • Wheels.
  • Current200 A
  • Voltage230 V
  • Duty cycle60 %
  • Coated electrodes1.6 – 5.0 mm
  • Thread thickness0.8 – 1.0 mm
  • Coil weight 5 – 15 kg
  • Generator7 – 9 KVA / 230V ±17%
  • Dimensions51 x 42 x 32 cm
  • Weight22 kg
  • BORNA connector1/2” (35 – 50) ø
  • Power cord3.5m x 2.5 mm²
  • Cable + ground clamp3m – 25 mm²
  • Cable + electrode clamp3m – 25 mm²
  • Thread torch15 AK
  • Contact tips included0.8 mm
  • Sheaves included0.8 – 1.0 mm
