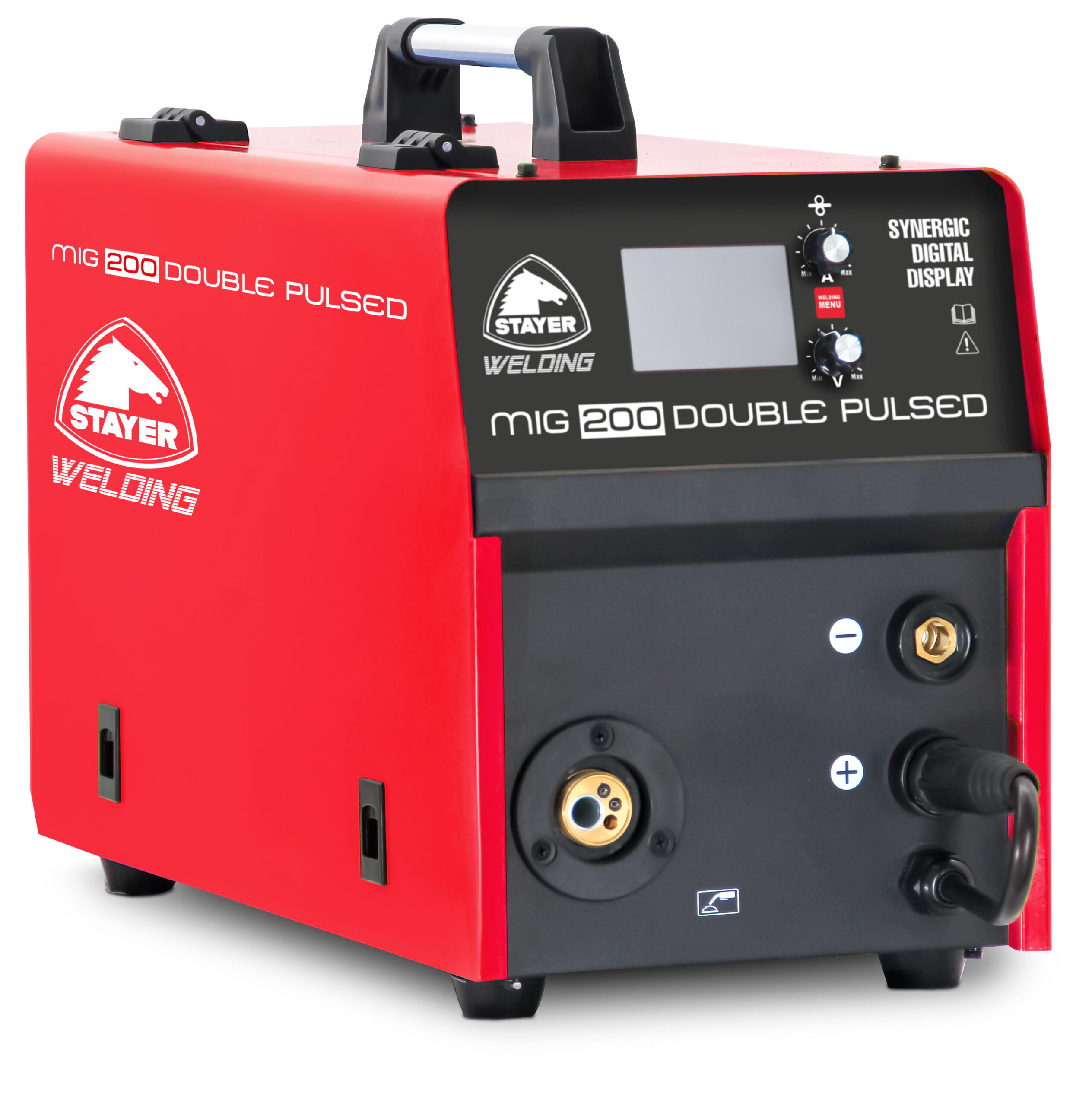

DOUBLE PULSE SYNERGIC MIG - MAG / 200A
MIG 200 DOUBLE PULSED

All about DOUBLE PULSE SYNERGIC MIG - MAG / 200A
MIG 200 DOUBLE PULSED

  • Professional digital inverter equipment for all types of welding, intelligent synergic settings and a large digital screen with a 60% duty cycle.
  • 230V single-phase professional equipment for MIG, MMA and TIG welding, 200 amps and compact size.
  • Large LCD screen with intuitive controls, where all the parameters for a weld are displayed and configured professional and exact.
  • Equipped with an MCU microcontroller that provides fluidity and quick response in the different welding modes.
  • Synergic system suitable for welding all types of carbon and stainless steel, magnesium aluminum / silicon, aluminum and copper.
  • Includes specific configuration modes for MMA coated electrode, pulsed / double pulsed and manual mode. spray mode without splashes in all kinds of positions thanks to the pulses.
  • Memory to save different configurations and be able to use it optimally.
  • Includes 2T, 4T, 4TH and Spot sequence modes.
  • Includes parametrics optimized for 0.8, 1.0 and 1.2mm wire.
  • Includes two sets of 25mm² torches. A special short one for aluminum and another long one for steel.
  • 4-contact drive mechanism including quadruple ‘U’ sheave special for aluminum and ‘V’ special steel.
  • Manufactured under strict European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU, IEC 60974.
  • Adaptive thermal protection and software managed overload protection system.
  • Suitable for generators, capable of withstanding voltage deviations between ±17%.
  • Current200 A
  • Voltage230 V
  • Gear Factor60 %
  • Coated electrodes1.5 – 5.0 mm
  • Thread thickness0.8 – 1.0 – 1.2 mm
  • Coil weight5 – 15 kg
  • Used with generator10 KVA / 230V ±17%
  • Dimensions58 x 40 x 27 cm
  • Weight17.5 kg
  • DINSE terminal1/2” (35 – 50) ø
  • Power cord3m – 2.5 mm²
  • Cable + ground clamp2m – 25 mm²
  • Cable + electrode clamp2m – 25 mm²
  • MIG steel torchMB24 – 4m
  • Aluminum MIG TorchMB24 – 2m
  • V-sheavesx2 (0.8 / 1.0) mm
  • U-sheavesx4 (1.0 / 1.2) mm FLUX
