MIG MULTI RANGE / MIG - MAG WELDERS
MIG 165 MULTI

All about MIG MULTI RANGE / MIG - MAG WELDERS

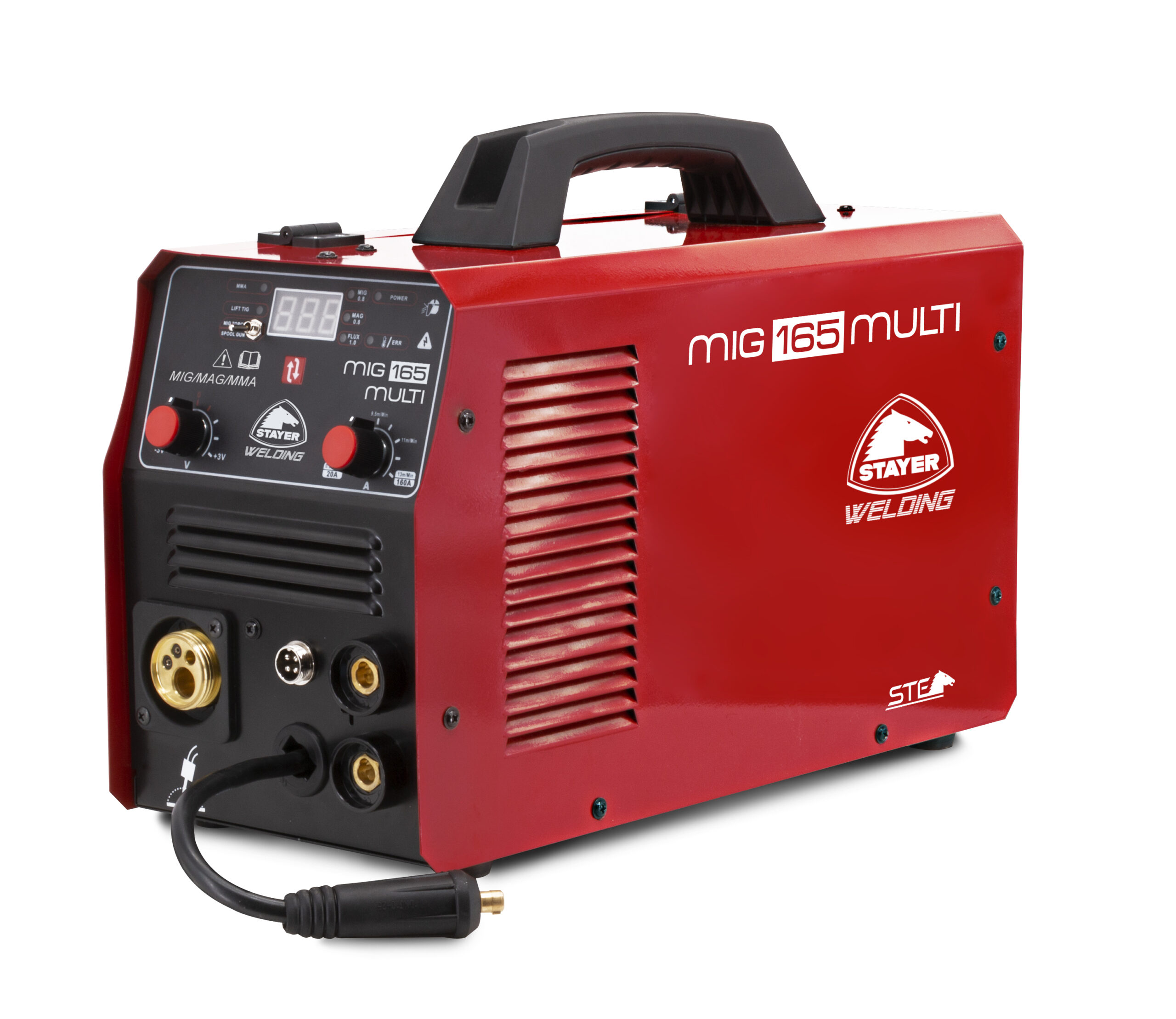

MIG 165 MULTI

  • STAYER MIG MULTI range, with connection for EUROTORCH torch and with power of 160-170 amps.
  • Designed for MIG, TIG and MMA processes of the highest quality.
  • Easy setup in MIG mode, possibility to use gas or hollow wire without gas.
  • With gas, connect torch return to positive terminal (+).
  • Hollow wire without gas, connect torch return to negative terminal (-).
  • Efficient and simple wire welding adjustment of only two buttons: one for control including speed mode and one for voltage. A switch enables the change of the wire work mode (MIG) and electrode mode (MMA) and TIG.
  • Protection against over temperature and over currents.
  • Very complete equipment including torches, sheave, ground cables and electrode holder
  • IGBT technology based on state-of-the-art microprocessor control capable of providing up to 170 amps (MIG 170).
  • Transportable and robust: Compact, low weight due to the use of fully inverter power circuitry. Oversized and quality components.
  • MIG 160 for coils from 0.5 to 1Kg.
  • MIG165 / 170 is for coils from 0.5 to 5Kg.
  • Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
  • Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
  • Main input cable / 2m x 2.5mm².
  • Ground clamp & cable / 1.5m x 16mm².
  • Electrode clamp & cable / Cobre puro. 2.5m x 16mm².
  • Internal coil winder for 0.5 up to 5kg.
  • 15AK / 3m MIG torch.
  • Current160 A
  • Voltage230 V
  • Duty Cycle60 %
  • Coated Electrodes1.6 – 4.0 mm
  • Thread thickness0.6 – 0.8 – 0.9 mm
  • Coil weight0.5 – 1 – 5 kg
  • Generator5 – 7 KVA / 230V ±17%
  • Dimensions42 x 31 x 18 cm
  • Weight13 kg
  • Borna connector3/8” (10 – 25) ø
  • Power cord2m x 2.5 mm²
  • Cable + ground clamp1.5m x 16 mm²
  • Cable + electrode clamp2.5m – 16 mm²
  • MIG torch15 AK
  • Contact tip included1.0
  • Sheaves included0.8 – 1.0
  • Cod.1.2688
