TIG RANGE

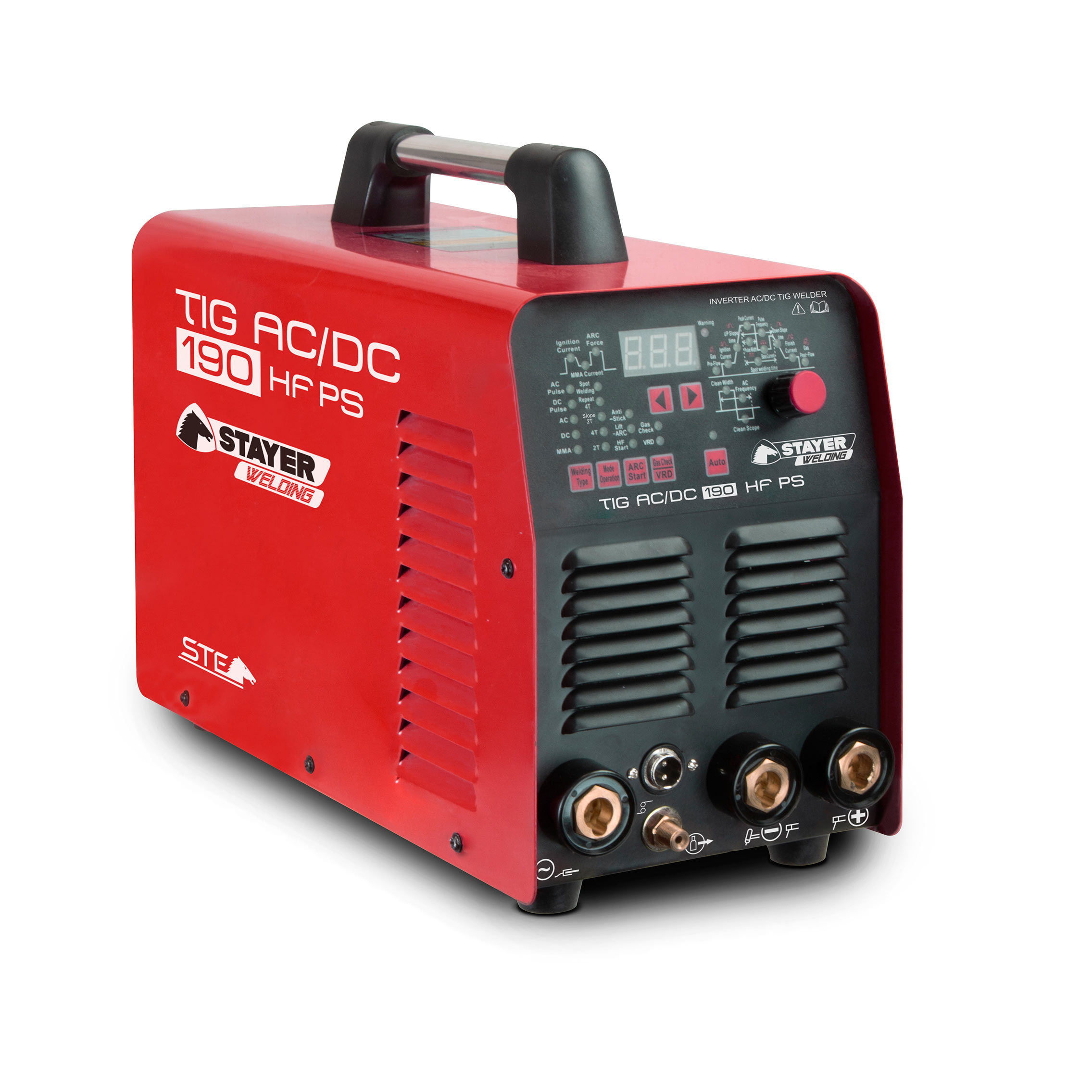

TIG AC / DC 190 HF PS

All about TIG RANGE
TIG AC / DC 190 HF PS

  • Severe-service Inverter welding equipment for TIG 200-315A at 40% duty cycle, designed for maximum quality industrial TIG. Focused on INOX, aluminium, alloys and all kind of steel works.
  • Highly productive: all the control and configuration potential are possible due an easy and intuitive microprocessor-controlled menu. Includes professional prime HF-HV functions (high-frequency/high-voltage) 2T/4T, optional mode control in DC, modes control in AC, pulsed mode, ramps and gas control, gas flow and post-flow control and pulsed welding mode, with and without repetition in the TIG AC/
    DC 190 HF PS model. Includes an easy mode to obtain the highest optimal configuration even when if the welder is not yet accustomed to set it up.
  • Extra-sized refrigerated unit for a non-stop productivity.
  • Able for coated electrode welding by setting it up from the menu.
  • Includes double reactor for an exact alternating aluminium welding current production.
  • High-quality: heavy plate covering double 100% metal structure. Non-stop industrial productivity. Industrial and military range components and pieces including EMI filter, main transformer with a medium socket for a higher performance and unique 800V/300A, C150/MURP200 IGBTS, secondary diodes and industrial rectifiers.
  • Main difference between 190 and 200 is that 190 is a professional type whereas the 200 is an industrial type.
  • Versatile: ready for electricity generator usage. Bears a 17% voltage rises and downs.
  • Power cable. 3m x 2.5 mm²

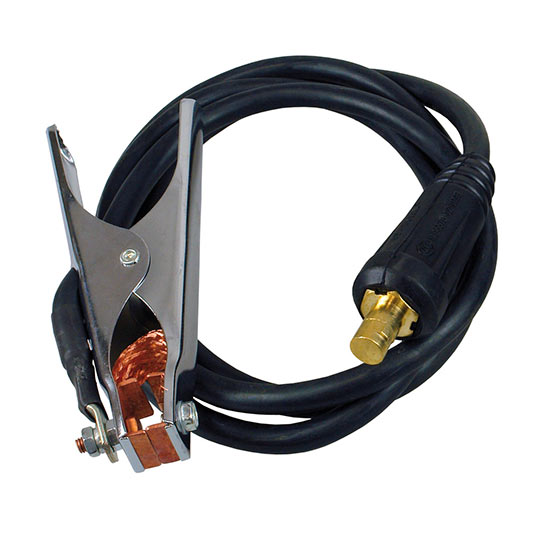

  • Ground cable with clamps. 2m x 25 mm²

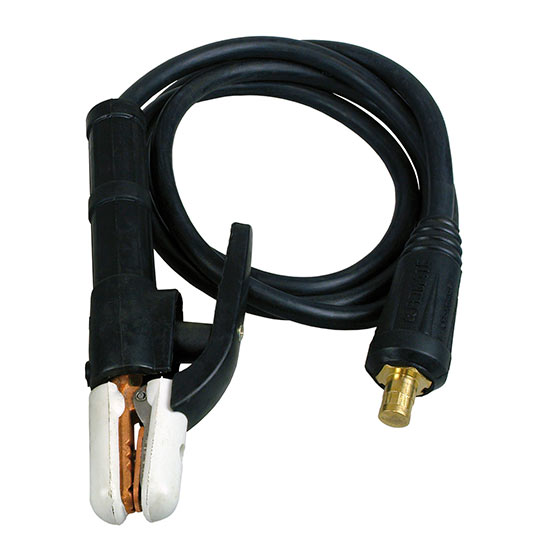

  • Electrode cable with clamp. 3m x 25 mm²

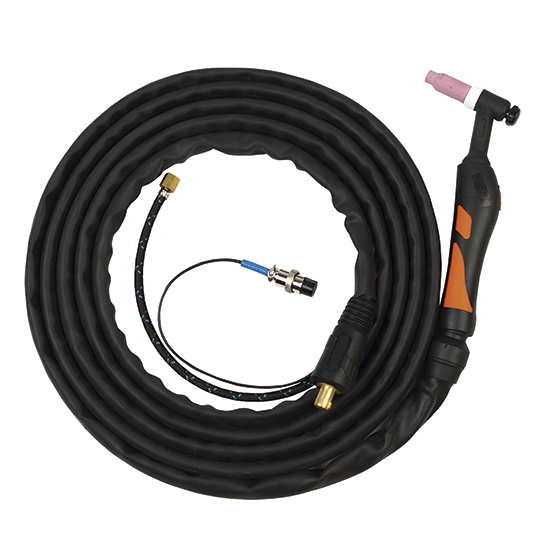

  • Ergonomic torch SR17, 3 m x 16 mm²

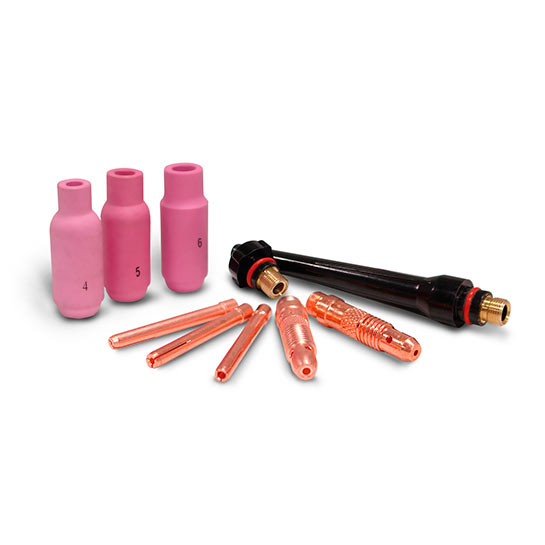

  • TIG Torch accesories
    • 5 nozzles (4, 5, 6, 7 y 8).
    • 4 electrode clamps (1.6, 2.0, 2.4 y 3.2mm²)
    • 2 covers (long and short)

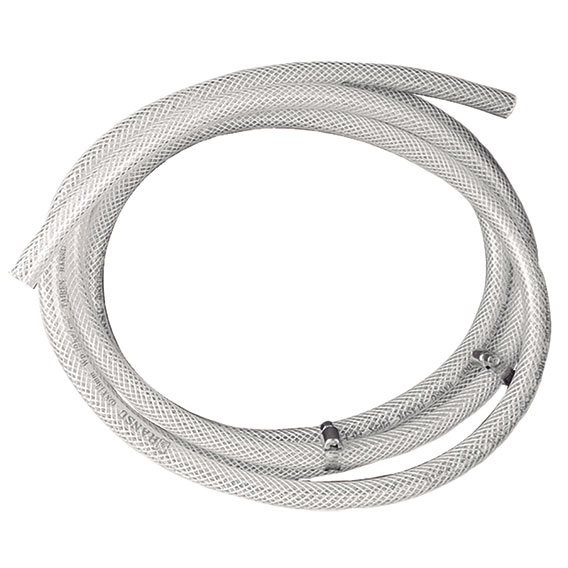

  • Gas hose 3m Ø13×8 (Max pressure. 12 bar), with braces.

All accessories available in our catalogue.

  • Output current200 A
  • Voltage230 V
  • Generator6 KVA
  • Duty cycle60 %
  • MAx. Electrode 6mm
  • Max. electrode tungsten3.25 mm
  • Weight21 KG
  • DINSE connector1/2″
