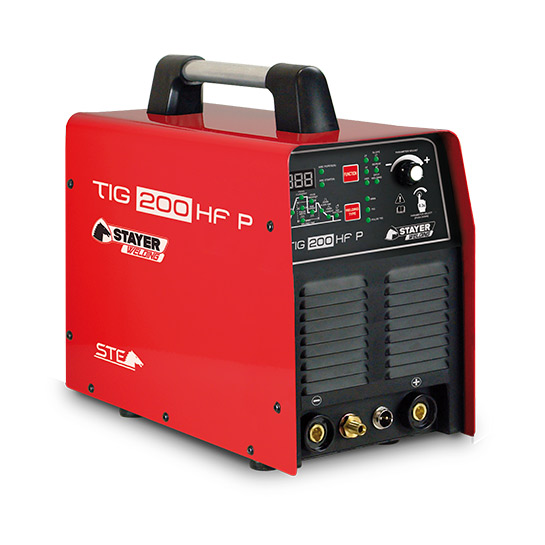

TIG HF-200A WELDER
TIG DC 200 HF P

All about TIG HF-200A WELDER
TIG DC 200 HF P

  • TIG welding equipment, for maximum quality severe use of all types of carbon steels, stainless steels, titanium and alloys and pulsed wave control. Suitable for use with stick electrode up to 170 amps.
  • Pulsed TIG welding to control base current, peak current and active welding times. Control of duty cycle and argon postflow
  • Very productive in TIG welding, high frequency ignition without HF contact.
  • Sturdy frame with thick metal
  • High frequency (HF) multiprocess TIG, configurable welding opening times, 2T/4T, TIG / pulsed TIG, Spot and ramp control for all types of materials, except aluminium.
  • Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
  • Possibility of activating the VRD function, voltage reduction in the no-load terminals to maintain safety in humid environments, according to IEC 60974.
  • Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
  • Current200 A
  • Voltage230 V
  • Duty cycle60 %
  • Coated electrodes1.6 – 6 mm
  • Tungsten electrode3.25 mm
  • Generator5 – 8 KVA / 230V ±17%
  • Dimensions43.5 x 26.5 x 18.5 cm
  • Weight14 kg
  • DINSE connector1/2” (35 – 50) ø
  • Power cord3m x 2.5 mm²

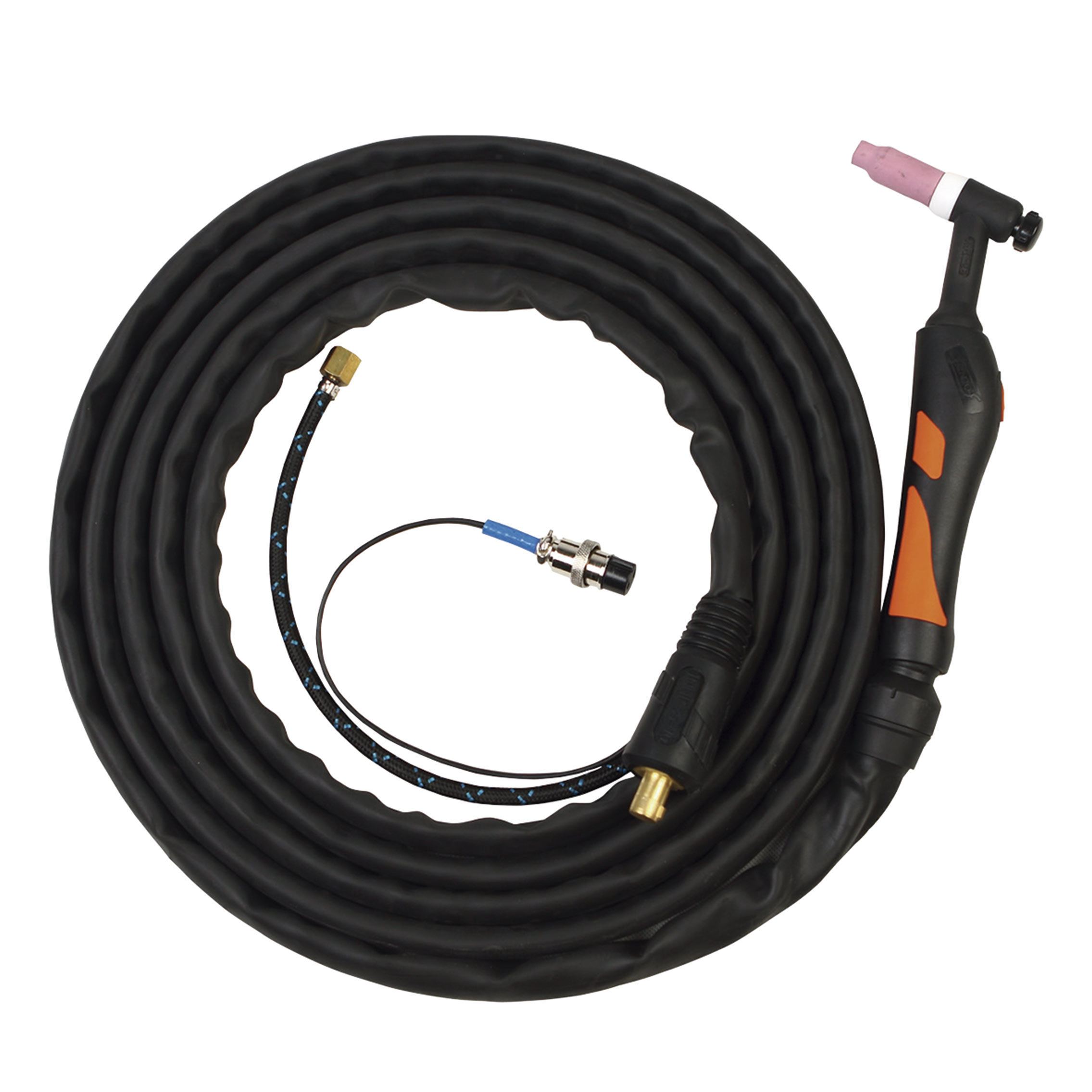

  • TIG HF torch3m x 16 mm²

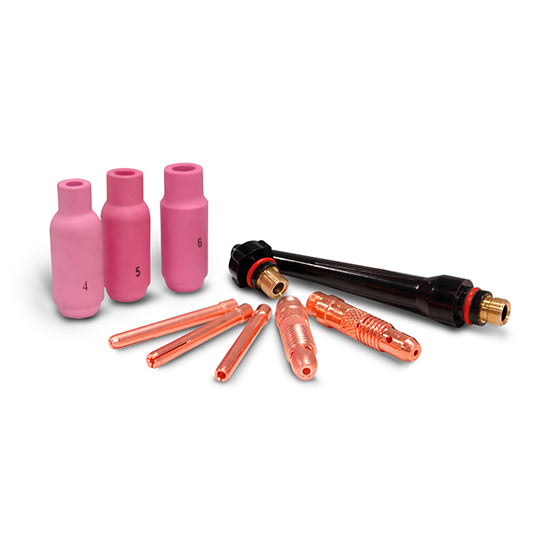

  • Torch accessoriesIncluded

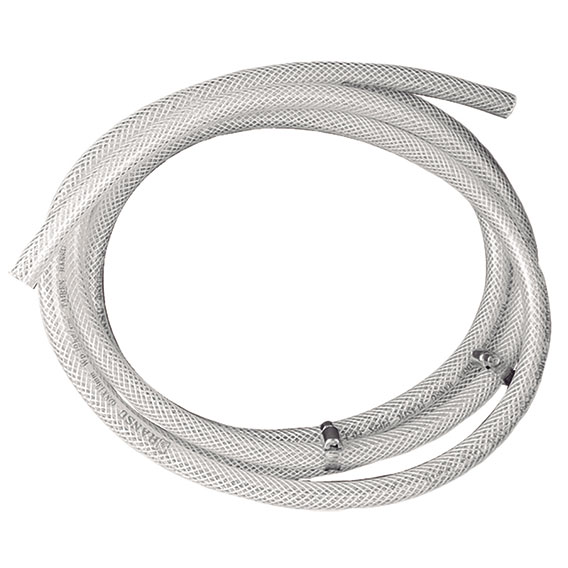

  • Gas hoseIncluded
