PLASMA CUTTERS / INVERTER MMA
PLASMA 100 T GE

All about PLASMA CUTTERS / INVERTER MMA
PLASMA 100 T GE

  • Professional Plasma metal cutting system using Inverter technology.
  • Prepared for fast and clean cuts of all types of metals and alloys.
  • Solid manufacturing under European regulations 2014/35/EU, 2014/30/EU, 2011/65/EU, IEC 60974.
  • Manufactured for use in production tasks in severe service industrial environments for metal construction, boilermaking, shipyards, scrap yards and maintenance.
  • 40A with 100 VDC in vacuum for PLASMA MULTI 40 AND PLASMA 40 COM and 100A with 130VDC in vacuum for PLASMA 10 TGE. All at 60% duty cycle.
  • The PLASMA 40 COM GE mobility equipment includes an internal 1 HP compressor for autonomy without having to connect the equipment to the compressed air installation.
  • Metallic carpentry and extra strong casings with interior reinforcements to withstand shocks. Steel blades for durability and resistance.
  • Advanced design and high-quality electronic components, including high-end HF switchers and rectifiers, toroidal power transformers, and top-of-the-line components. Modular design for easy service.
  • Extended resistance to feeding abuse. It supports up to 270 VAC in single-phase equipment and up to 470 VAC in three-phase equipment under conditions of 50-meter extension cords.
  • Prepared for all types of generators stabilized by capacitor, AVR or sine wave inverter.
  • All models include cutting torches, air hoses, and work cable and clamp.
  • Plasma MULTI 40: three functions:
    1. MMA coated electrode welding with external Arc Force and welding even cellulosic with 160A at 60%.
    2. Top quality TIG welding with non-contact high frequency arc ignition.
    3. Plasma cutting of all types of metals with 40A HF non-contact start.
  • Very complete accessories including plasma torch, TIG torch and electrode cables to start working directly.
  • Prepared for all types of jobs, from light to heavy industrial work or construction that require maximum cutting capacity and simplicity of use.
  • Current100 A
  • Voltage3 x 400 V
  • Duty cycle60 %
  • Coated electrodesX
  • Cutting capacity 32 mm
  • CompressorX
  • Generator12 KVA / 230V ±17%
  • Dimensions62 x 50 x 32 cm
  • Weight30 kg
  • DINSE connector3/8” (10 – 25) ø
  • Power cord3m x 2.5 mm²

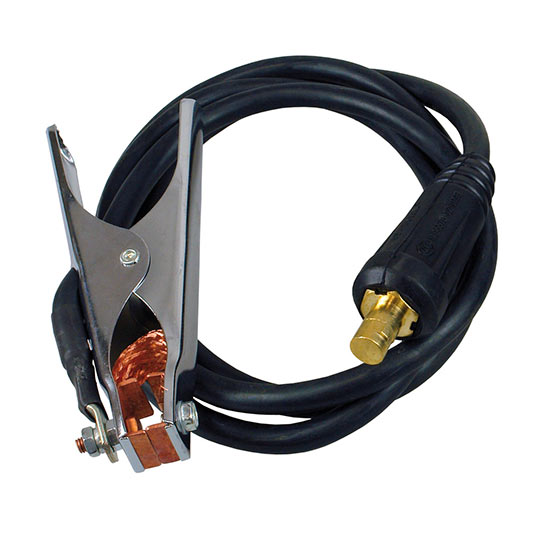

  • Cable + ground clamp3m – 16 mm²
  • Cable + electrode clampX

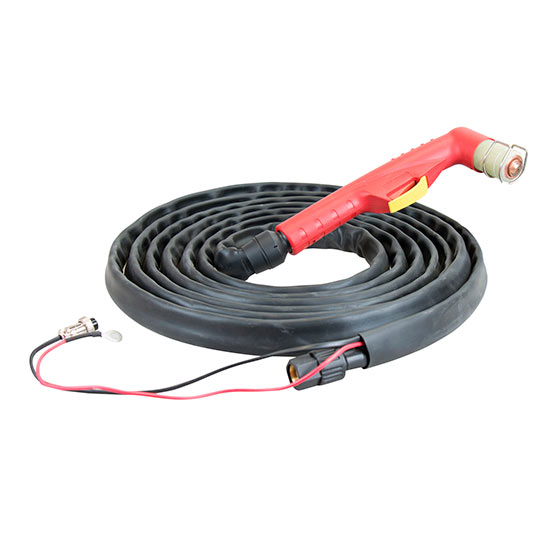

  • Antorcha PlasmaLT 100 / 6m
  • Antorcha TIGX

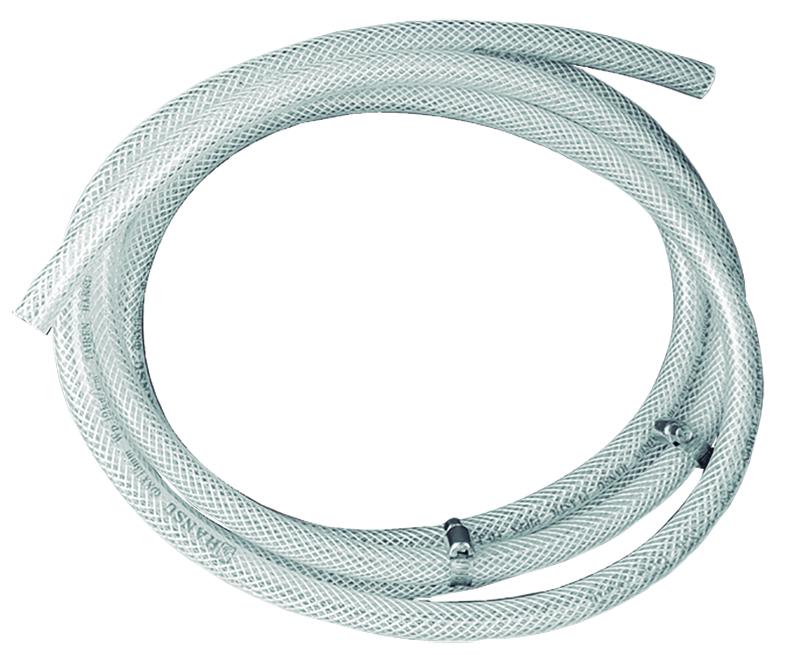

  • Manguera de aireIncluded
