All about INVERTER MMA -160A

  • Superior 160 amp inverter equipment, with synergic electronic adjustment for all types of electrodes and configurable for TIG Lift Arc without contact.
  • Synergic configuration based on electrode diameter, up to 4mm diameter.
  • Latest generation components, top quality IGBTs and reinforced internal construction and improved and silent ventilation.
  • Possibility of activating the VRD function, voltage reduction in the no-load terminals to maintain safety in humid environments, according to IEC 60974.
  • Incremental regulation of Arc Force for coated electrodes of any type.
  • Complete control panel managed by STAYER software, with the features of synergic selection of amperage according to electrode diameter, configurable Arc Force setting, selectable VRD for safe welding and changeover to
  • TIG mode with Lift Arc for contamination-free starting.
  • Easy to use, it has hot start (easy start of the arc), and anti stick (prevents the electrode from sticking) automatically configured by the STAYER software.
  • Equipment designed and manufactured in accordance with European regulations 2014/35/EU, 2014/30/EU and 2011/65/EU, which guarantee a solid construction and safety of use.
  • Prepared for use with a stabilized generator, given its voltage input range of +/-17%.
  • Output current (A)160 A
  • voltage (V)230 V
  • Duty cycle100%
  • Max. Electrode 1.6-4.0 mm
  • Generator5 – 7 KVA / 230V ±17%
  • Weight2.4 kg
  • Dimensions31 x 17.5 x 10 cm
  • DINSE connector3/8 (10-25) ø
  • Power cord2.5m x 2.5 mm²
  • Cable + ground clamp1.5m – 16 mm²

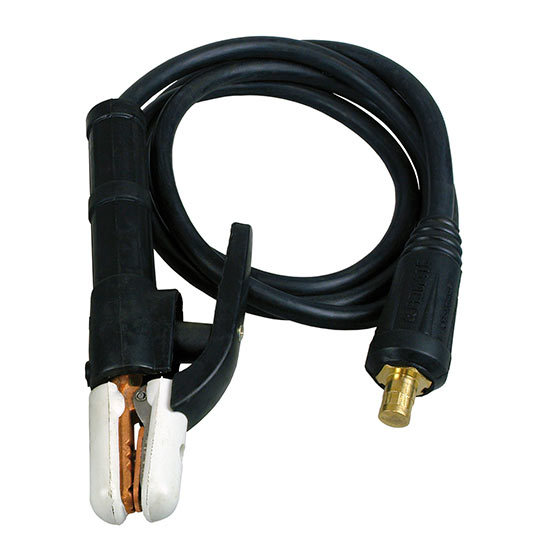

  • Cable + electrode clamp2.5m – 16 mm²
  • Hammer / BrushIncluido
  • BriefcaseIncluido
  • Cod.1.2570
