DRILLS ACCESORIES

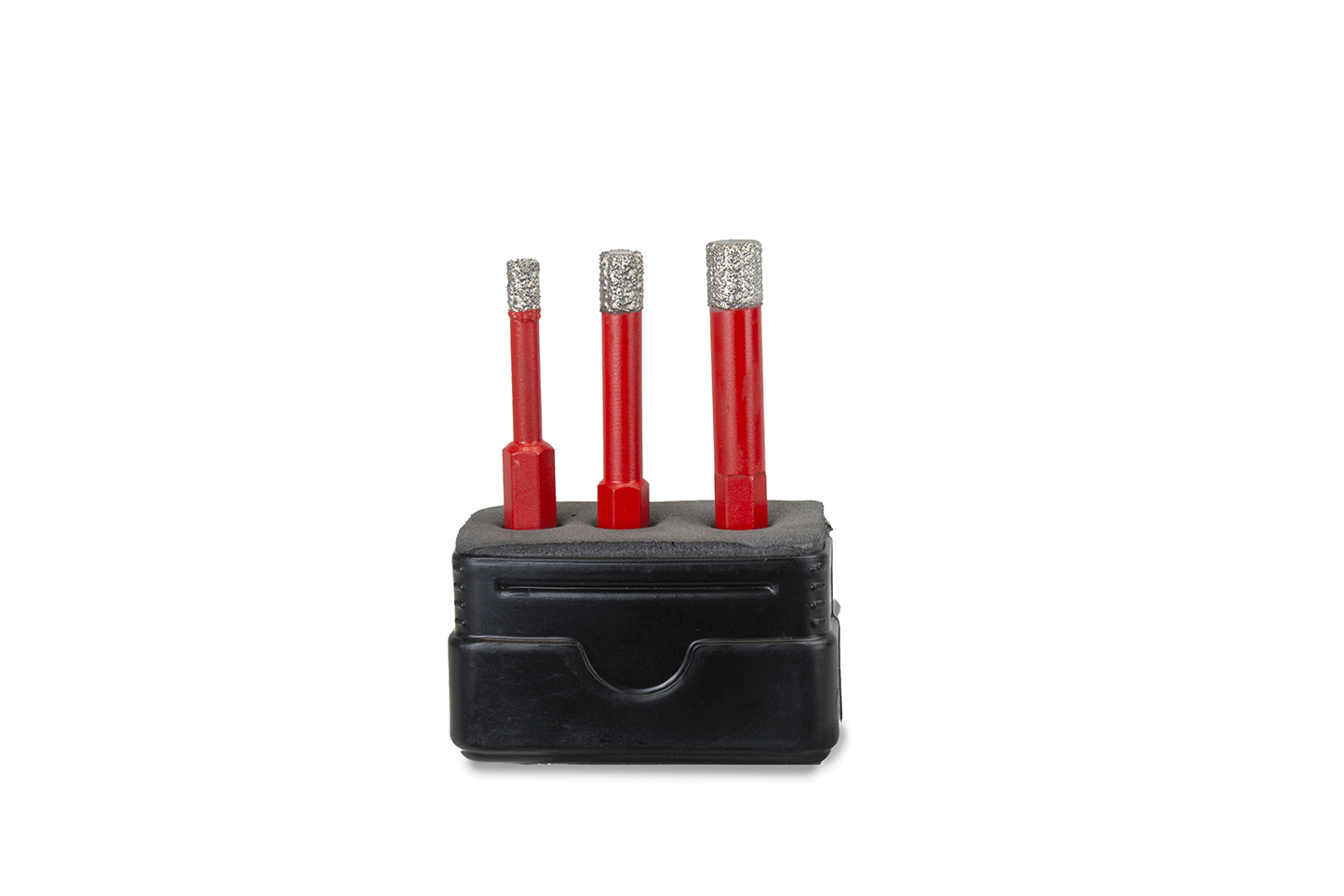

VACUUM BRAZED DIAMOND BITS FOR PORCELANIC

MAIN ADVANTAGES

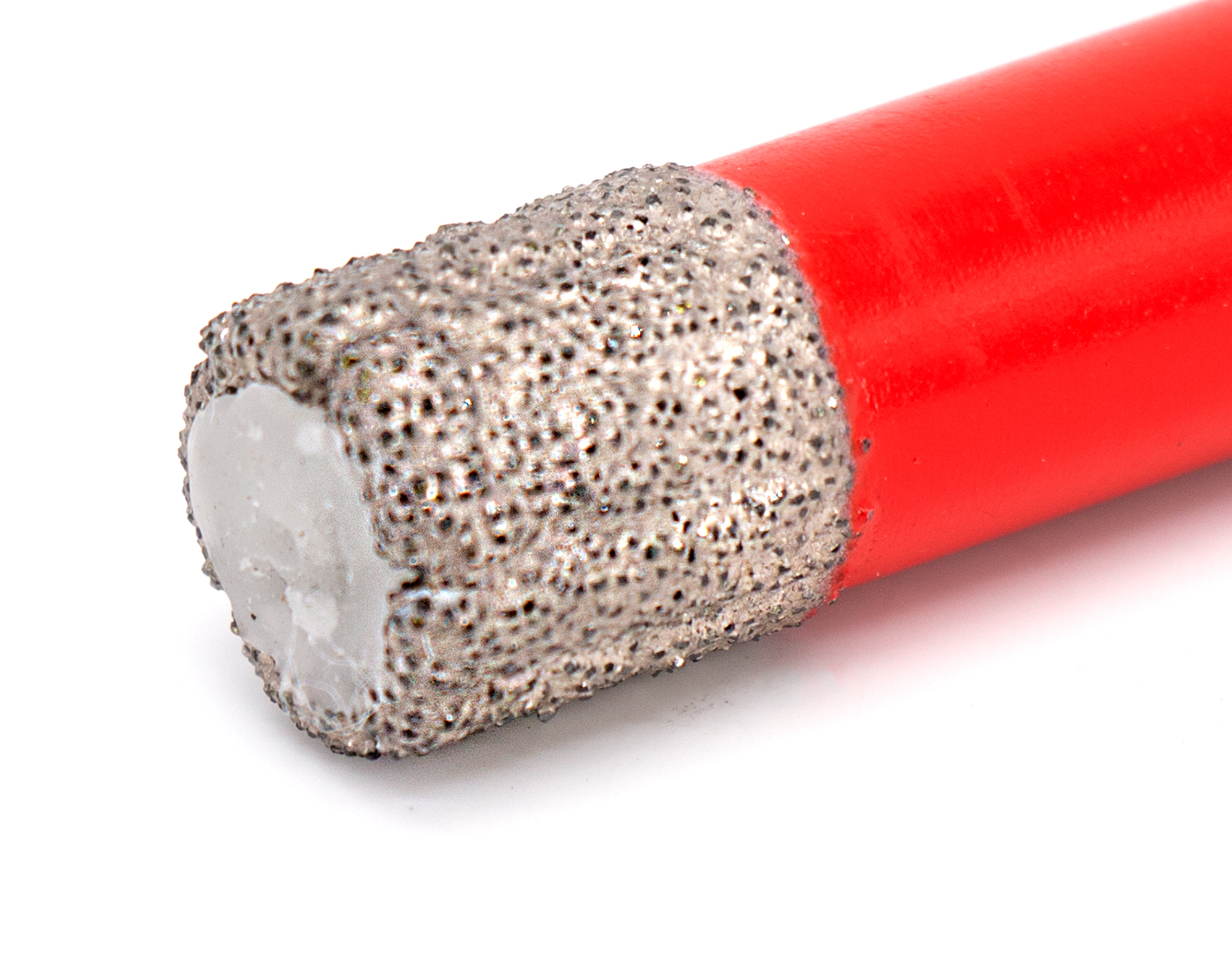

• VACUUM BRAZING technology (vacuum brazing) that improves the retention of diamond grains, achieving
considerably increase the useful life of the drill, increasing resistance to heating and frictional wear.
• Wax coating (vegetable paraffin) inside the drill, which acts as a lubricant to cool the drill,
lowering the temperature and increasing its useful life.
• Diamond drill bits for dry cutting, lubrication with water is not necessary.
• Perfect finish in stoneware and porcelain stoneware.

APPLICATIONS
For drilling ceramic materials, stoneware, porcelain stoneware (porcelain tile), marble, granite.

USE
Hexagonal shank (1/4”) for use with a drill, without the percussion function
Before drilling, the area to be drilled can be marked with bodybuilder’s tape to prevent the tool from slipping.
bit, but it is not necessary, since with diamond bits you must start drilling with the bit tilted a little
angle between 15-35º, and make orbital movements. In this way, the bit will not slip, and it will last longer.
Adapt the revolutions to the diameter of the drill with which you want to drill, in this way the useful life of the drills will be extended.
drill bits.
If it is required to make precise holes in the wall, we have a suction cup with a drilling guide with various sizes,
ranging from 4 mm to 12 mm.
We also have a set that includes a jar of wax to extend the life of our bits, and an adapter
for drilling, which is used to be able to use with a drill, the M14 drill bits/crowns that are prepared to be used with
angle grinder.
