DIAMOND CORES FOR ANGLE GRINDERS

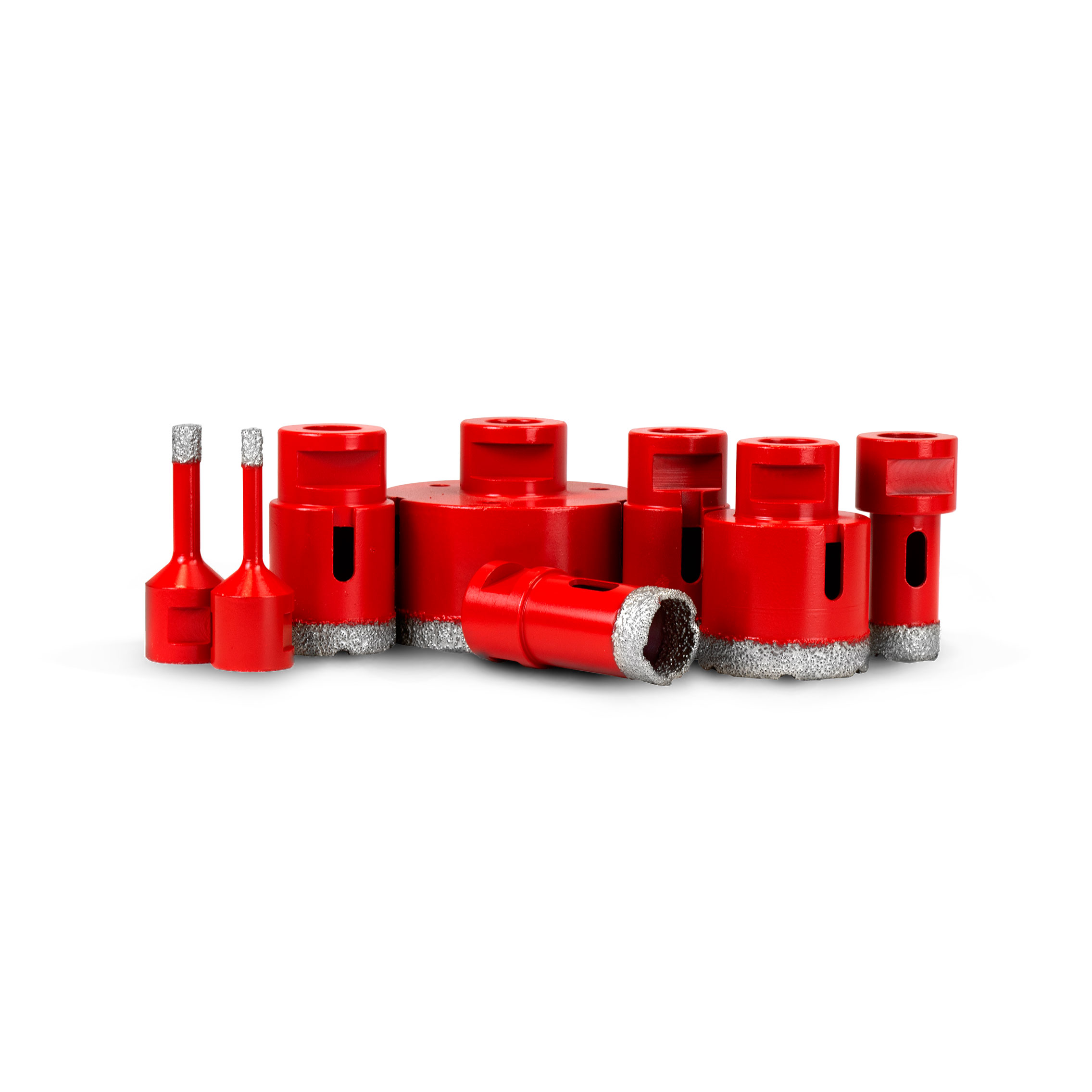

VACUUM BRAZED DIAMOND CORES

All about DIAMOND CORES FOR ANGLE GRINDERS
VACUUM BRAZED DIAMOND CORES

        MAIN ADVANTAGES

  • Dry cutting diamond core bits with M14 insert for use with grinders.
  • Diamond set with Vacuum brazed technology: vacuum brazed, which increases the retention of the diamond, giving the crown greater resistance to friction and heat.
  • Dry cutting, without the need to wet the surface to be drilled or to refrigerate it during the process.
    Specially designed for drilling Stoneware, porcelain materials and ceramics, they also have excellent performance in the drilling of natural stones of high hardness such as marble or granite.
  • For small diameters (<12 mm) it is recommended to lubricate the crown with wax, to protect it from heat and increase its useful life.
  • To prolong the useful life of the crown and obtain a better finish, it is recommended to use grinders with a speed regulator.
    The larger the crown, the higher rpm the grinder should have.
  • To drill, it is recommended to start with an angle of attack of 30º-45º and carry out oscillating movements to get the most out of the crown and reduce localized wear and overheating.
  • Once drilling is finished, stop the grinder without removing it from the hole and wait for the crown to has come to a complete stop before moving the grinder to avoid accidents with drill debris. Once the stop grinder, the remaining material must be removed from the crown.
Diameter Insertion Cod.
5 M14 40.66
6 M14 40.43
8 M14 40.44
10 M14 40.45
12 M14 40.46
15 M14 40.71
18 M14 40.72
20 M14 40.47
25 M14 40.48
30 M14 40.49
32 M14 40.73
35 M14 40.50
40 M14 40.67
45 M14 40.51
50 M14 40.68
60 M14 40.69
75 M14 40.53
120 M14 40.52
