ADVANTAGES

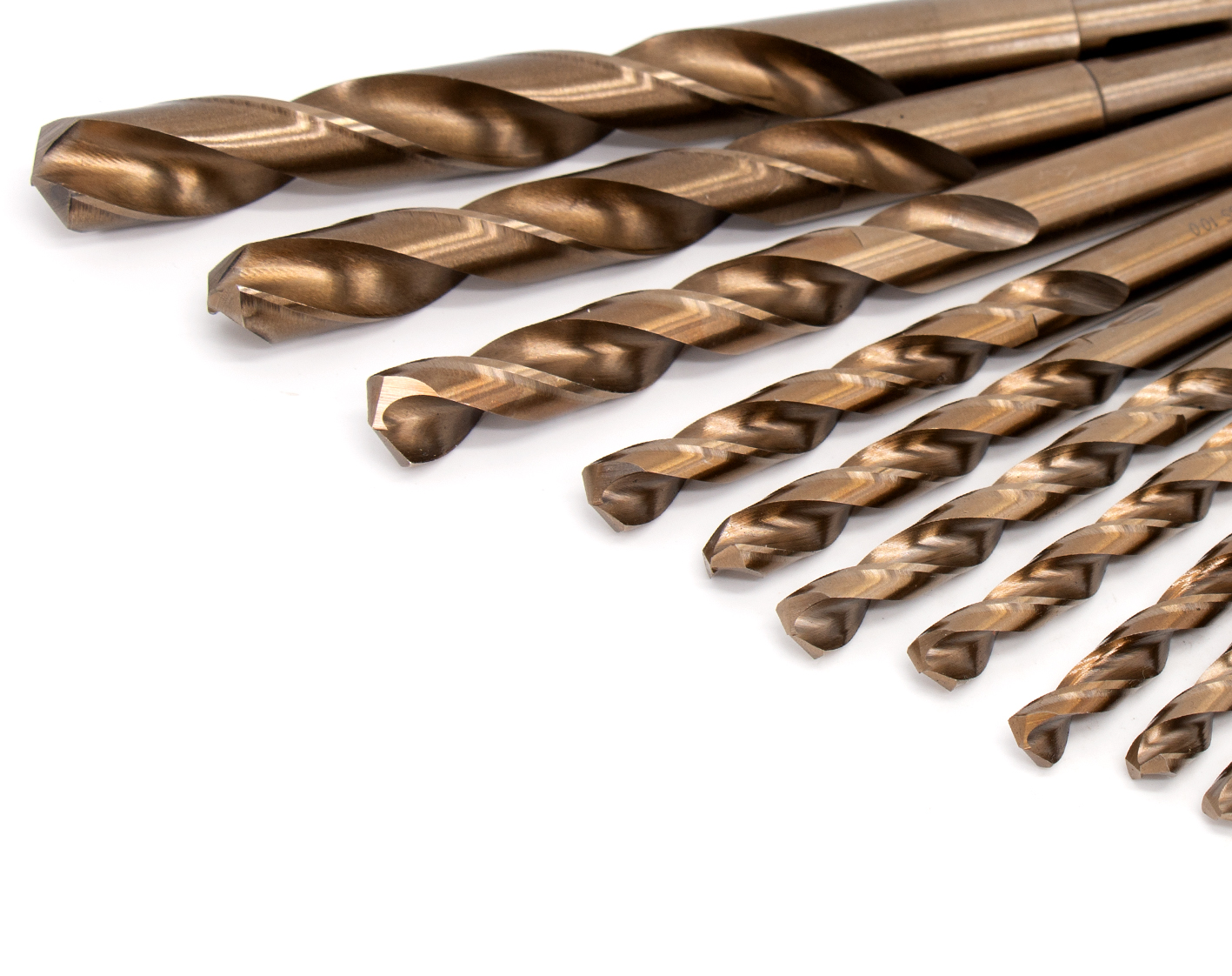

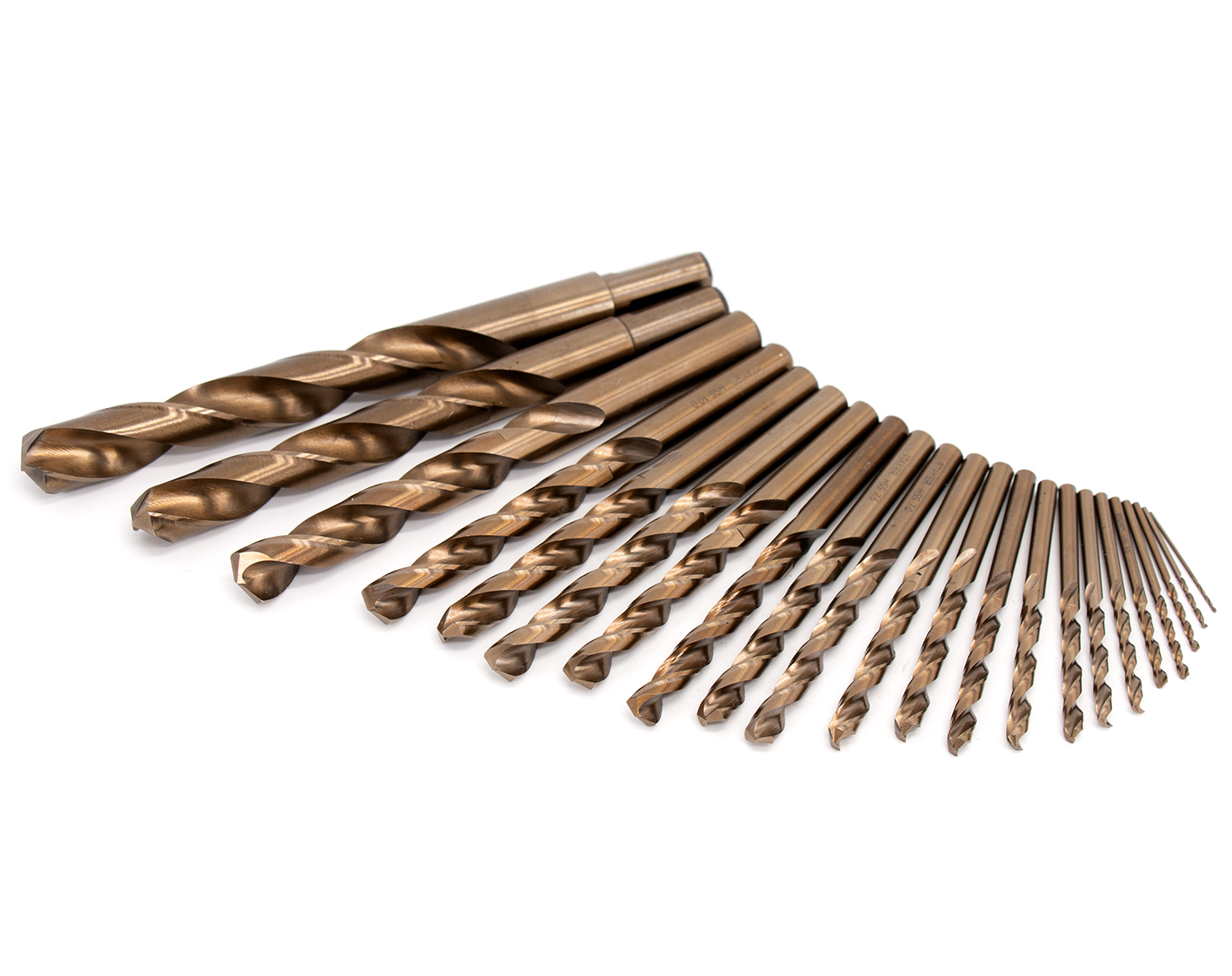

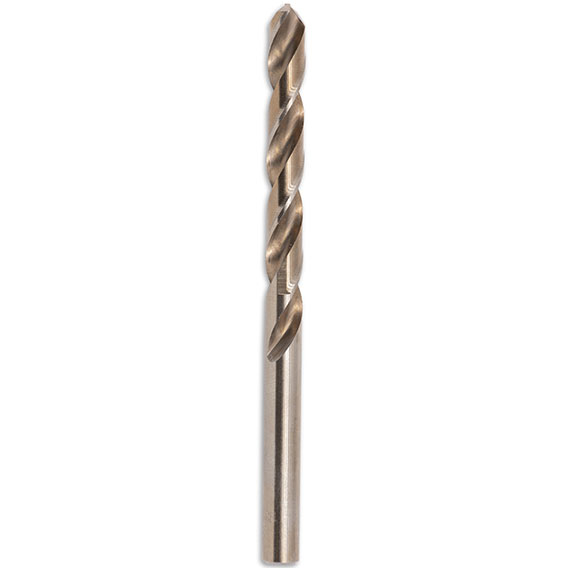

• Helical HSS-Co made from high quality super fast steel alloyed with 5% Cobalt , DIN 338, rectified, right cutting, Type N, Cylindrical shank.
• Sharppened bit tip with a 135° attack angle, improved drilling on hard materials increasing the drilling speed over beveled edge bits. Sharpened in accordance to DIN 1412 C.

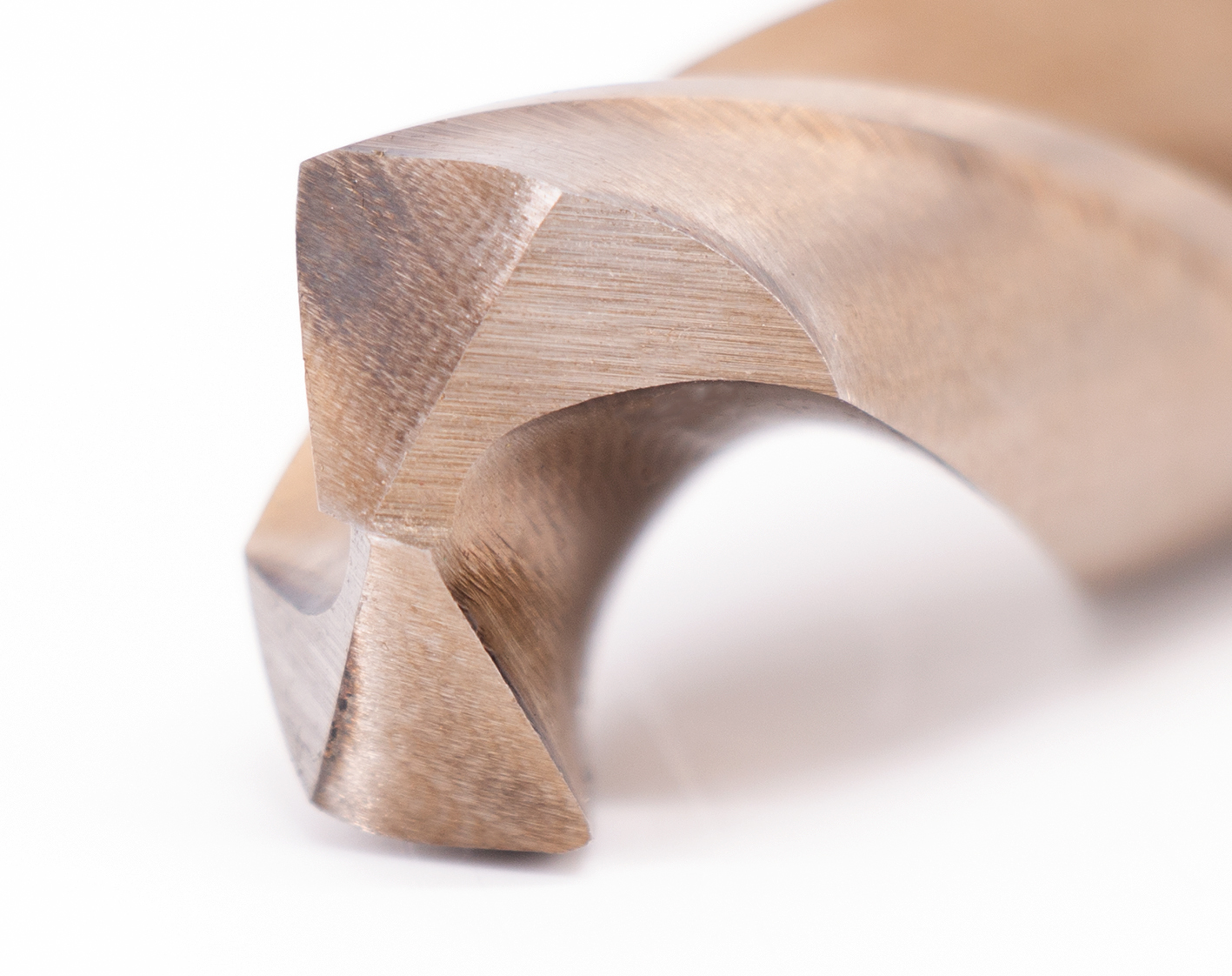

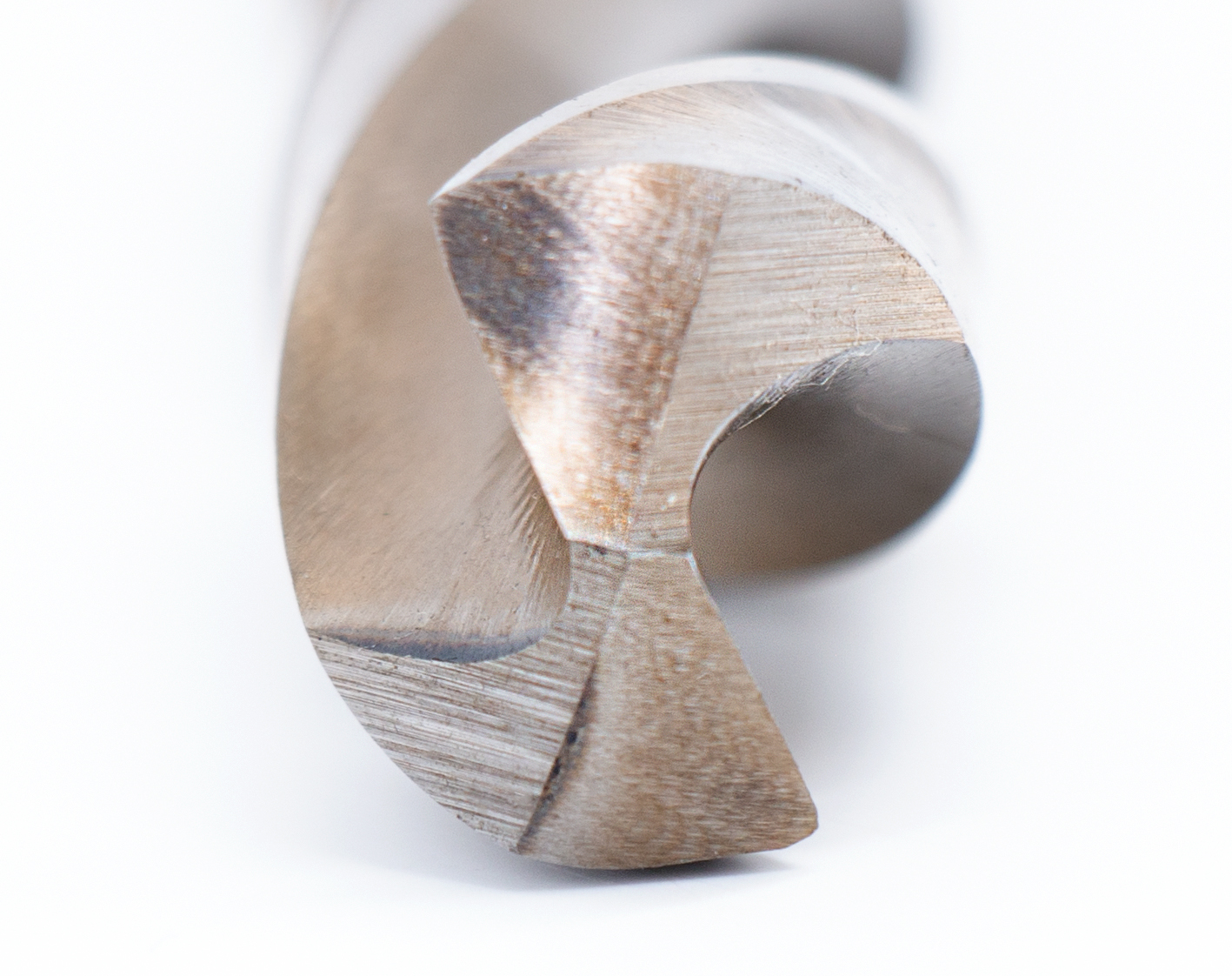

• Split Point to avoid bit sliding while improving drilling quality.
• Milled bit for an optimal precission.
• Tensile strength < 1200 N/mm².
• Double spiral groove for an optimal debris extraction.
• Long lifespan: Cobalt alloy significantly improves heat and wear resistances.
APPLICATIONS
Specially suited for stainless steel drilling, alloyed and non alloyed steels with a tensile strength up to 1200 N/mm², grey casting and steel casting.
USE
Use with a bench drill, not sutiable for hand drills due to the bits hardness.
| Ø (mm) |
Lt (mm) |
Lu (mm) |
Code |
| 1 | 34 | 12 | 12.637 |
| 1.5 | 40 | 18 | |
| 2 | 49 | 24 | |
| 2.5 | 57 | 30 | |
| 3 | 61 | 33 | |
| 3.5 | 70 | 39 | |
| 4 | 75 | 43 | |
| 4.5 | 80 | 47 | |
| 5 | 86 | 52 | |
| 5.5 | 93 | 57 | |
| 6 | 93 | 57 | |
| 6.5 | 101 | 63 | |
| 7 | 109 | 69 | |
| 7.5 | 69 | 69 | |
| 8 | 117 | 75 | |
| 8.5 | 117 | 75 | |
| 9 | 125 | 81 | |
| 9.5 | 125 | 81 | |
| 10 | 133 | 87 |
