ACCESSORIES FOR DRILLS
10 drill set, HSS-R, DIN 338, roll laminated, 118º tip

All about ACCESSORIES FOR DRILLS

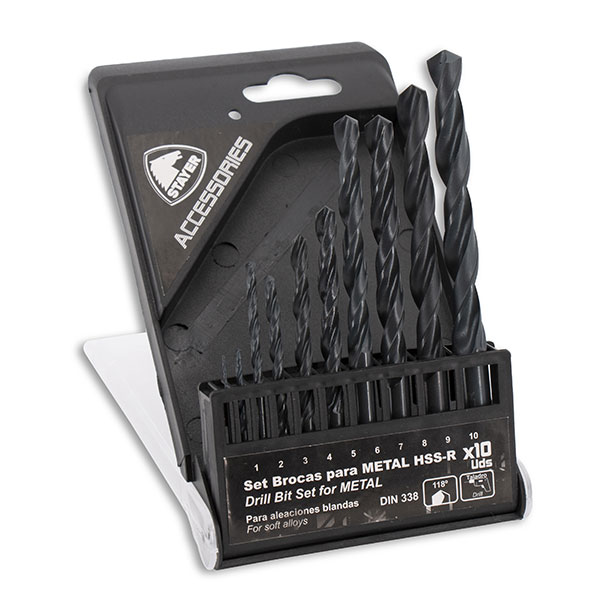

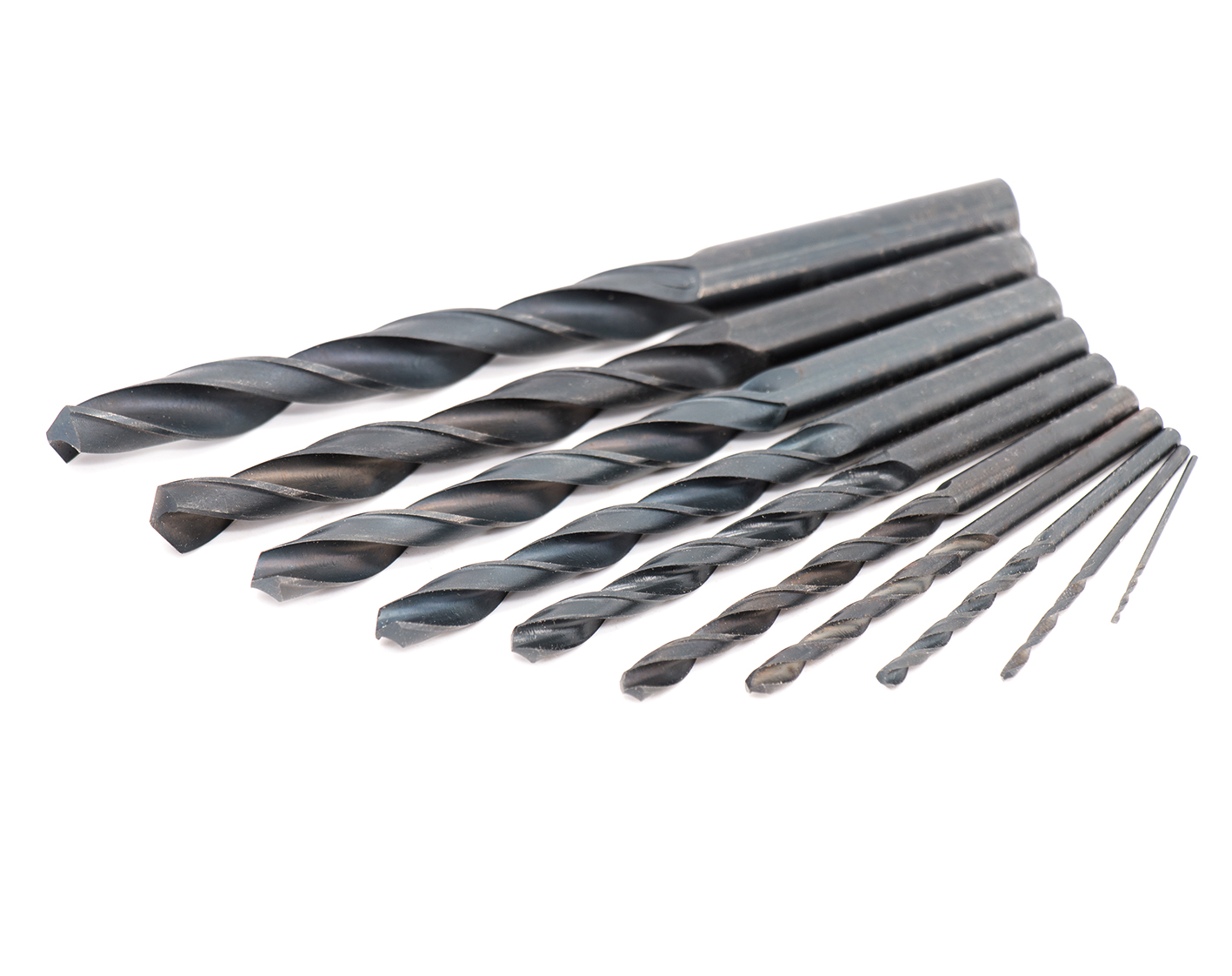

10 drill set, HSS-R, DIN 338, roll laminated, 118º tip



ADVANTAGES

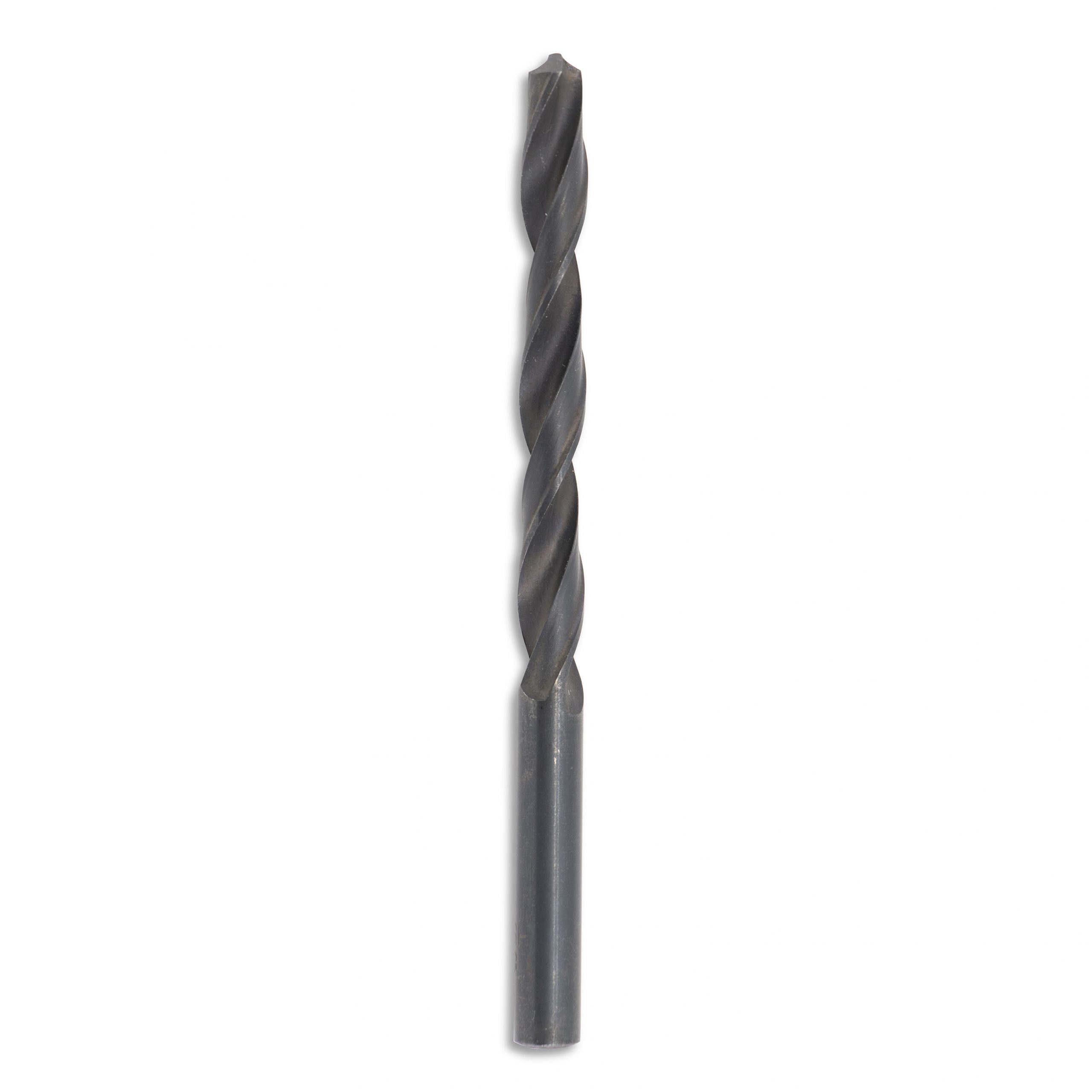

Helical HSS bit Made from high quality super fast steel DIN 338, roll laminated, right cutting, Type N, Cylindrical shank.

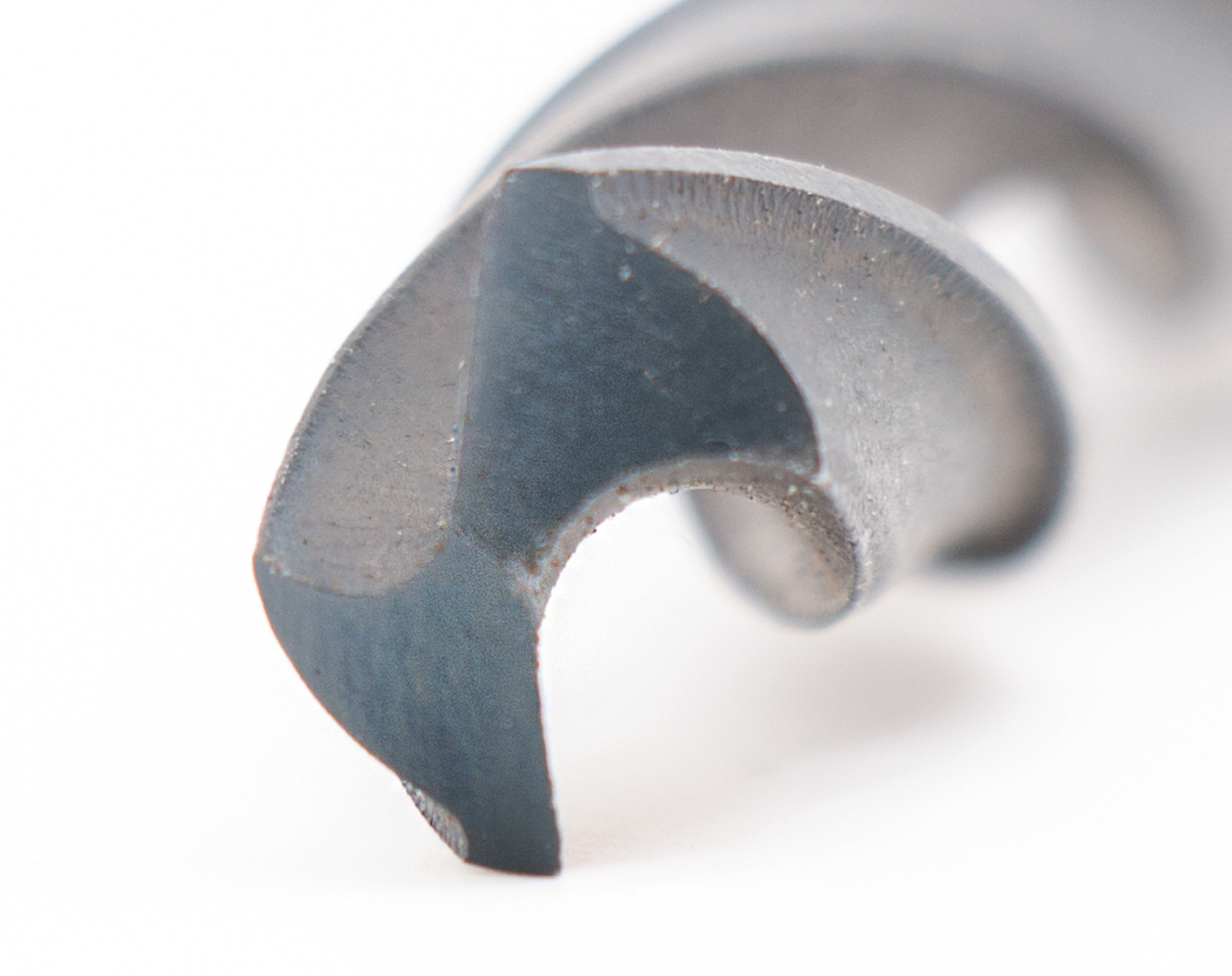

Sharppened bit tip with a 118° attack angle, to improve the drilling quality on soft materials.
• Tensile strength < 900 N/mm².

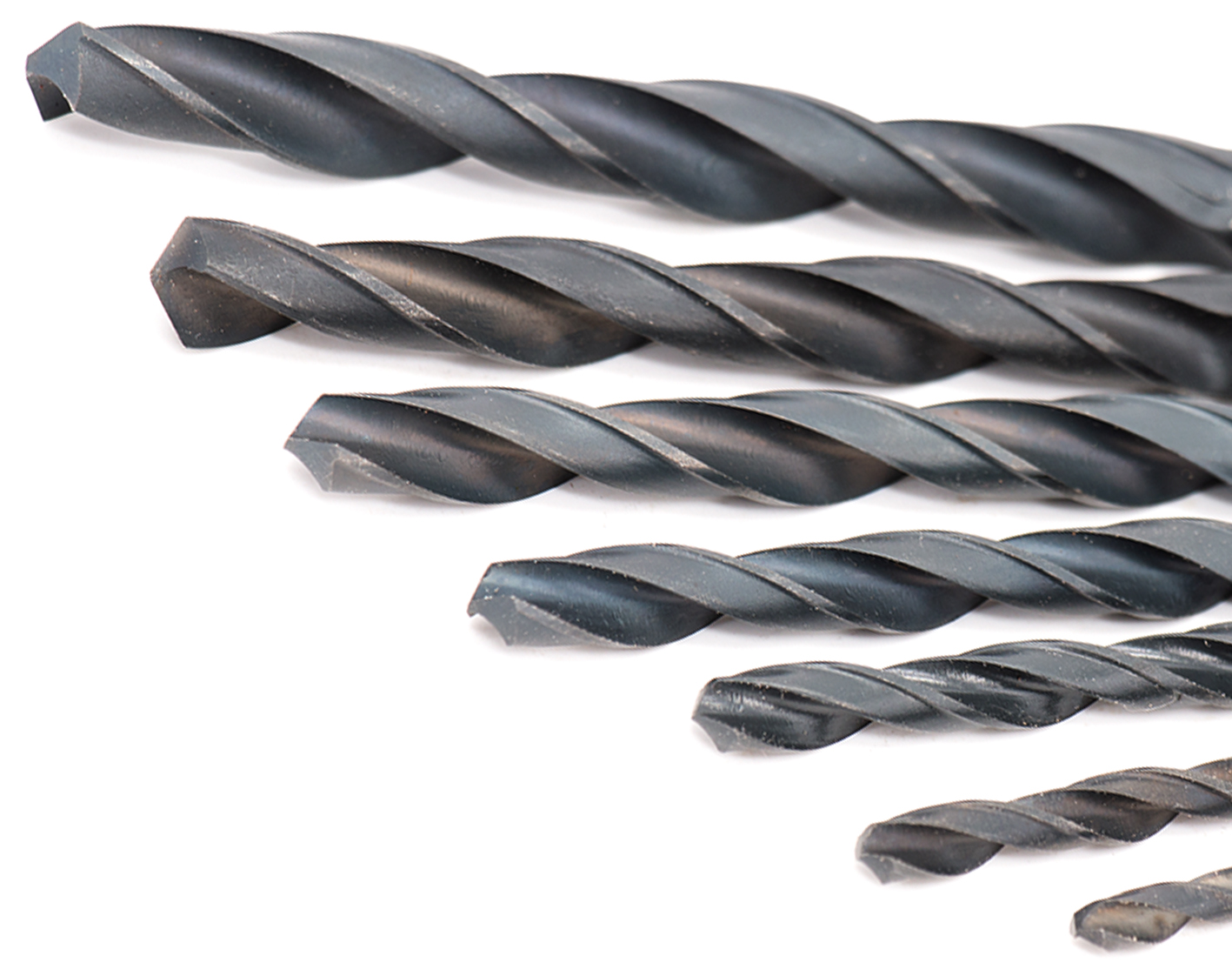

• Double spiral groove for an optimal debris extraction.
• High elasticity to reduce small diameter bits breaking.
Black oxide coating to improve the cutting quality while increasing the bit s heat resistance.

APPLICATIONS

Specially suited to drill cast iron and steels with a hardness level up to 900 N/mm2, non ferrous metals
like aluminum, copper, brass, hard plastics and soft alloys.

USE

Use with a hand drill, bench drills with a 10 mm or more chuck.

             Ø
          (mm)
            Lt
         (mm)
           Lu
        (mm)
          Code
1 34 12         12.635
2 49 24
3 61 33
4 75 43
5 86 52
6 93 57
7 109 69
8 117 75
9 125 81
10 133 87
