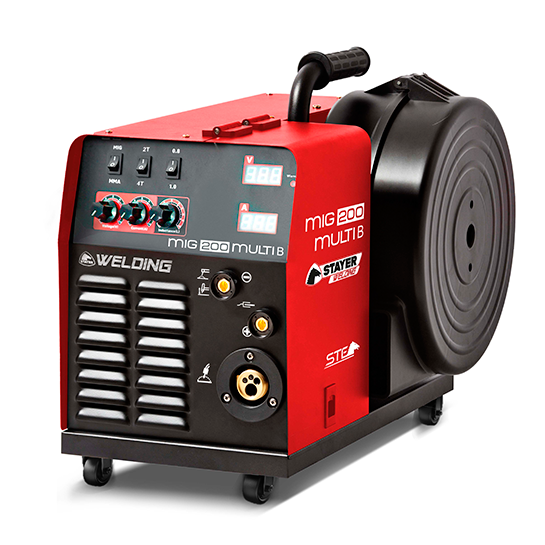

INVERTER MIG/MAG
MIG 200 MULTI B

All about INVERTER MIG/MAG
MIG 200 MULTI B

  • Electronic equipment for wire welding (MIG-MAG-hollow wire), TIG and coated electrode.
  • Solid construction exceeding European specifications 2011/65/EU, 2014/35/EU, 2014/30/EU and EN/ IEC 60974.
  • New professional spool holder with capacity for large spools (15Kg).
  • Precision drive mechanism with powerful 60W motor. 0.8mm / 1.0mm roller.
  • Easy to regulate: Classic analog controls for precision adjustment of current, voltage and inductance and 2 digital displays to see the current and voltage value.
  • Easy and fast polarity reversal for welding with any type of hollow wire.
  • Includes 2T/4T drive for easy wire welding.
  • Lightweight and small for its performance, 4 swivel casters and ergonomic carrying handle.
  • MMA (coated electrode) mode includes Hot Start, Arc Force and Anti Stick advantages to optimize initial arc striking, improve arc stability during welding and prevent electrode sticking due to mishandling.
  • Equipment fully prepared for safe use with stabilized generators, AVR and Inverter.

Included:

  • Power cable / Pure copper. 3m x 2.5 mm²

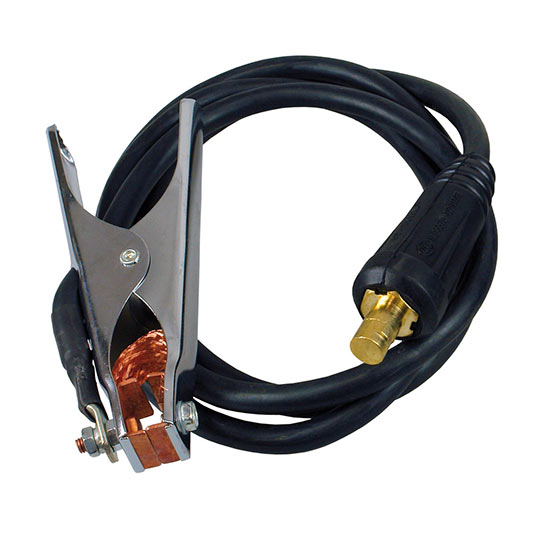

  • Earth cable with clamp / Pure copper. 3m x 25 mm²

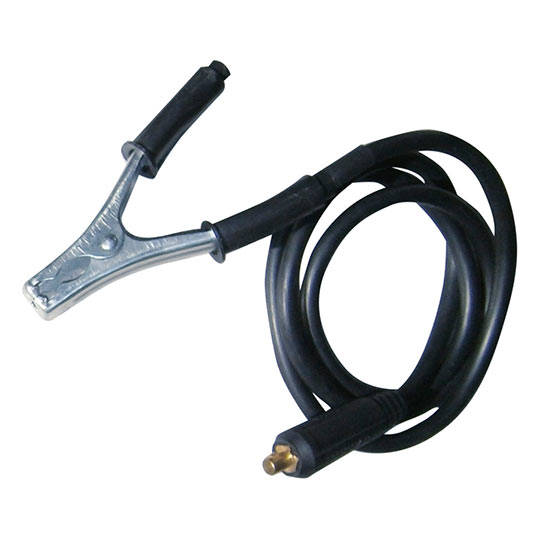

  • Electrode cable with clamp / Pure copper. 3m x 25 mm²
  • Winder for bobbins up to 15kg
  • BINZEL wire torch 15AK / 3m.
  • Wheels and carrying handle.



  • Current200 A
  • Thread thickness0.6 – 1.0 mm
  • Coil weight 5 – 15 kg
  • Coated electrodes1.6 – 5 mm
  • Weight22 kg
  • Voltage230 V
  • Generator7 – 9 KVA
  • Dimensions23 x 50 x 36 cm
  • BORNA connectorø 1/2” (35 – 50)
  • Cod.1.3626
